Aditya Stainless, located in Kolkata, India, has earned a solid reputation as a reliable manufacturer and supplier of top-notch welding consumables. Their offerings include the AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod, which are specially designed for superior weldability and corrosion resistance. This filler is perfect for joining molybdenum-bearing austenitic stainless steels like 316 and 316L. With its higher silicon content, it enhances arc stability and gives a polished look to weld beads, making it a go-to choice for precision fabrication. Aditya’s ER316LSi filler wires and rods adhere to strict quality standards and find applications in various industries, including food and beverage, pharmaceuticals, marine, petrochemical, and chemical processing.
ER316LSi is composed of about 18–20% chromium, 11–14% nickel, 2–3% molybdenum, and a higher silicon content (0.65–1.00%) that boosts wetting and bead appearance. Its low carbon content (≤0.03%) helps avoid carbide precipitation, ensuring outstanding intergranular corrosion resistance. The mechanical properties are impressive, featuring a tensile strength of at least 75,000 psi (520 MPa), a yield strength of at least 57,000 psi (390 MPa), and an elongation of around 30%. This filler metal is particularly resistant to pitting and crevice corrosion, especially in chloride-rich environments, making it ideal for applications that demand high integrity and cleanliness in welded joints.
| Classification | AWS A5.9, ER316LSi |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER316LSi MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S |
| 0.03 | 18.0-20.0 | 11.0-14.0 | 2.0-3.0 | 1.0-2.5 | 0.65-1.0 | 0.03 | 0.03 |
| Yield, kpsi: | 64 |
| Tensile Strength, kpsi: | 90 |
| Elongation%, min: | 37 |
Contact us to get a quick quote for your requirement.

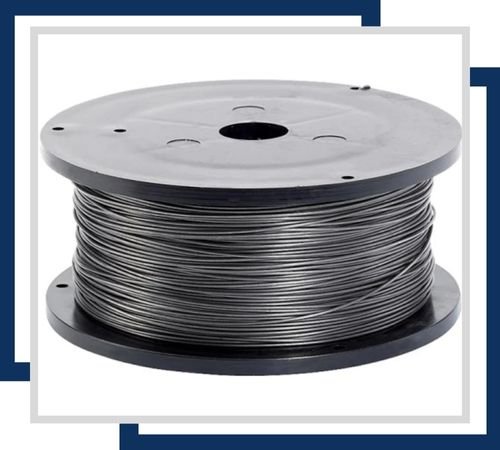

Stainless Steel ER316LSi MIG Filler Wire is designed for MIG welding applications with excellent corrosion resistance, especially in environments with chlorides and chemicals. It typically comes in sizes ranging from 0.030 inches (0.8 mm) to 0.045 inches (1.2 mm) in diameter. The wire provides good weld bead appearance and reduces spatter.

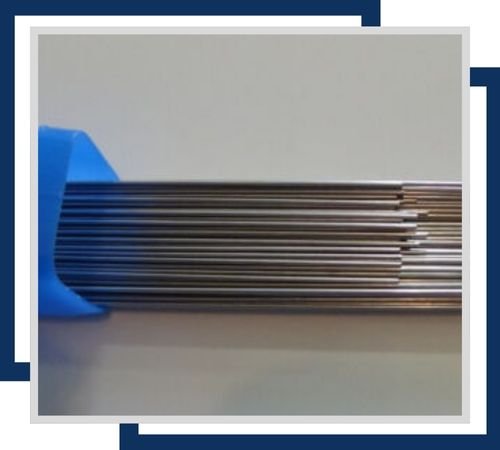

Stainless Steel ER316LSi TIG Filler Wire is suitable for TIG welding and offers enhanced corrosion resistance, particularly in harsh environments. It is available in sizes from 1/16 inch (1.6 mm) to 3/32 inch (2.4 mm) in diameter. The wire ensures high-quality, clean welds with minimal oxidation.

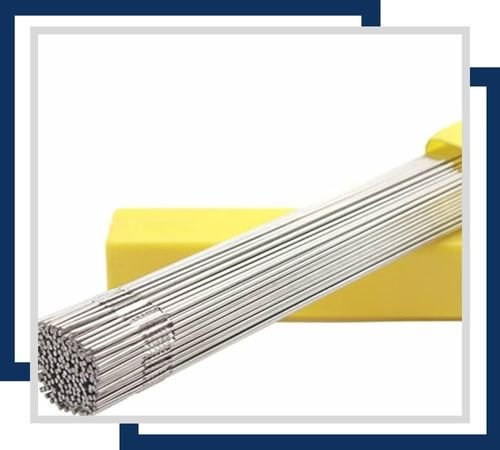

Stainless Steel ER316LSi TIG Filler Rod is used for TIG welding stainless steel, providing superior resistance to pitting and crevice corrosion. Commonly available in lengths of 36 inches (914 mm) and diameters from 1/16 inch (1.6 mm) to 3/32 inch (2.4 mm). It delivers excellent weld strength and smooth, clean welds.
Each AWS Class ER316LSi MIG and TIG Filler Welding Wire and Rod is carefully packed using high-quality materials to prevent any damage or contamination during transit. We prioritize timely deliveries also guaranteeing quick and efficient transportation to meet our clients needs. Additionally all relevant documentation regarding the product is provided at the time of delivery assuring full transparency and satisfaction for our valued customers.
The AWS ER316LSi MIG and TIG filler wire and rod are extensively utilized for welding 316 and 316L stainless steels in settings that require exceptional corrosion resistance, particularly against chlorides and acids. You’ll find it in food and beverage processing equipment, pharmaceutical machinery, marine fittings, heat exchangers, and chemical tanks. Thanks to its enhanced silicon content, it’s perfect for automated or robotic welding processes where achieving a smooth bead is crucial. Additionally, it’s used in pipelines, architectural components, and medical devices where precision and cleanliness are paramount.
