AWS Class ER320LR MIG and TIG Filler Welding Wire and Rod

Home > Electrodes > AWS Class ER320LR Mig & Tig Filler Welding Wire & Rod

AWS/ASME 5.14 ER320LR MIG & TIG Filler Wire Manufacturer in Kolkata SFA A5.9 ER320LR MIG & TIG Filler Rod Supplier in India, Alloy ER320LR Welding Mig & Tig Filler Wire Exporter in Kolkata, UNS S30888 Mig and Tig Stick Filler Metal Trader in Kolkata, AWS ER320LR Mig & Tig Filler Metal Rod & Wire India AWS Class ER320LR Metal Inert Gas (MIG) Welding Kolkata

Aditya Stainless, a top-notch manufacturer and supplier based in Kolkata, India, specializes in high-quality AWS Class ER320LR MIG and TIG Filler Welding Wire and Rod. This product is expertly crafted for welding austenitic stainless steels that are highly resistant to corrosion. With its carefully controlled low carbon and stabilized compositions, ER320LR offers exceptional protection against intergranular corrosion, stress corrosion cracking, and general chemical attacks. It’s particularly effective for welding alloys in both strong oxidizing and reducing environments. Thanks to its excellent weldability, arc stability, and resistance to carbide precipitation, this filler material is a go-to choice in industries like chemical processing, pharmaceuticals, and pulp and paper, ensuring durable and reliable weld joints.

AWS A5.9 ER320LR MIG & TIG Welding Filler Rod Manufacturer in Kolkata AWS Class ER320LR MIG & TIG Filler Metal Stockist in India, MIG & TIG Filler Rods Kolkata, MIG & TIG Filler Metal Stockist India AWS Class ER320LR Tungsten Inert Gas (TIG) Welding India

ER320LR is composed of about 19–21% chromium, 33–37% nickel, 2–3% molybdenum, and trace amounts of columbium (niobium), all while maintaining a very low carbon content (≤0.02%). These elements significantly boost its corrosion resistance in tough chemical settings, particularly against nitric and sulfuric acids. The typical mechanical properties include a tensile strength of at least 75,000 psi (520 MPa), yield strength of at least 50,000 psi (345 MPa), and an elongation of around 30%. Its stabilized chemistry is key in preventing intergranular corrosion after welding and during prolonged service, making it perfect for pressure-containing equipment and components that face chemical and thermal stress.

AWS Class ER320LR MIG and TIG Filler Welding Wire and Rod Specifications

Classification	AWS A5.9, ER320LR
Form	MIG spools, TIG cut lengths, Reels and Coils
Type Of Welding	Inert Gas Welding
Current	MIG-DCEP / TIG-DCEN
Diameters	.023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8”
Standard TIG straight lengths are available	36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request.
AWS ER320LR MIG & TIG Filler Metal Application & uses	Hardware tools Metallurgy Machinery Construction Shipbuilding Petroleum Chemical plant Power sector Gas Industry

AWS Class ER320LR MIG and TIG Filler Welding Wire and Rod Chemical Composition

8XC min/0.40 max

0.025

19.0-21.0

32.0-36.0

2.0-3.0

1.5-2.0

0.15

0.015

0.02

3.0-4.0

0.75

AWS Class ER320LR MIG and TIG Filler Welding Wire and Rod Mechanical Properties

Tensile Strength, ksi:	86*
Yield Strength, ksi:	58*
Elongation %:	35*

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Why Choose AWS Class ER320LR MIG and TIG Filler Welding Wire and Rod from Aditya Stainless?

Largest Inventory

Customer Support

On Time Deliveries

ISO Certified

Types of AWS Class ER320LR MIG and TIG Filler Welding Wire and Rod

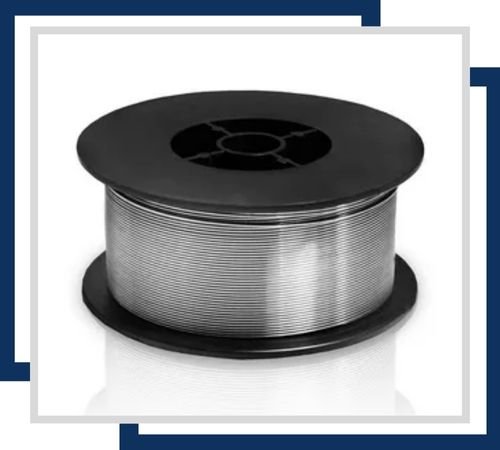

Stainless Steel ER320LR MIG Filler Wire

This welding wire is available in sizes ranging from 0.8mm to 1.6mm in diameter. It is designed for high corrosion resistance, particularly in chloride-containing environments. The ER320LR alloy ensures stability in both high and low temperatures, making it ideal for demanding applications.

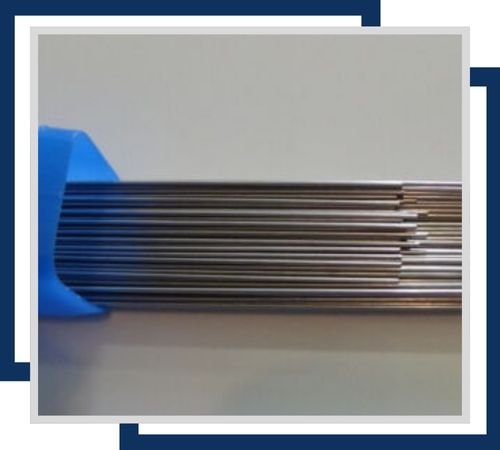

Stainless Steel ER320LR TIG Filler Wire

Available in sizes from 1.0mm to 2.4mm in diameter, this TIG filler wire offers excellent corrosion resistance, especially in aggressive chemical environments. The low carbon content of ER320LR minimizes carbide precipitation, ensuring enhanced durability and performance. It is suitable for welding similar alloys and dissimilar metals.

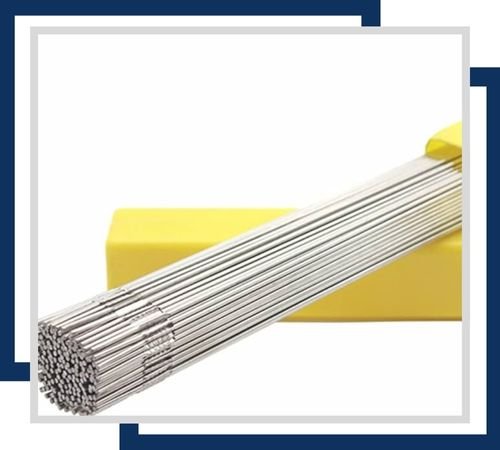

Stainless Steel ER320LR TIG Filler Rod

These rods come in diameters ranging from 1.6mm to 4.8mm, providing versatility for various welding needs. They offer superior corrosion resistance, particularly against intergranular and stress corrosion cracking. The ER320LR alloy composition makes them ideal for use in high-stress and high-temperature applications.

we conduct rigorous internal tests on our AWS Class ER320LR MIG and TIG Filler Welding Wire and Rod to ensure their superior performance and reliability. These tests include checks for weld strength, corrosion resistance and overall durability to meet stringent industry standards. We also offer third-party inspection services to provide additional assurance. Our focus on prompt delivery. Assure that our customers receive high-quality products on time, meeting their specific project requirements without delays.

Stainless Steel Industrial ER320LR MIG / TIG Filler Wire Price List in Kolkata, Aws Class ER320LR MIG /TIG Filler Welding Wire India, Stainless Steel ER320LR Mig & Tig Filler Wire Supplier in Kolkata India, SS ER320LR MIG & TIG Filler Metal Distributor in Kolkata, AWS Class ER320LR MIG & TIG Filler Metal Exporters India, UNS S30888 AWS Class ER320LR MIG and TIG Filler Welding Wire and Rod Kolkata

AWS Class ER320LR MIG and TIG Filler Welding Wires and Rods Uses

The AWS ER320LR MIG and TIG Filler Wire and Rod are designed specifically for welding base metals with similar compositions, like alloy 20 (UNS N08020), in corrosive environments that involve sulfuric acid, phosphoric acid, and other harsh chemicals. You’ll find it commonly used in heat exchangers, reactor vessels, piping systems, pumps, and valves within chemical and pharmaceutical facilities. It’s also a great choice for welding equipment in the food and beverage sector, where high corrosion resistance is a must.
