AWS Class ER347 MIG and TIG Filler Welding Wire and Rod

Home > Electrodes > AWS Class ER347 Mig & Tig Filler Welding Wire & Rod

AWS/ASME 5.14 ER347 MIG & TIG Filler Wire Manufacturer in Kolkata SFA A5.9 ER347 MIG & TIG Filler Rod Supplier in India, Alloy ER347 Welding Mig & Tig Filler Wire Exporter in Kolkata, UNS S34780 Mig and Tig Stick Filler Metal Trader in Kolkata, AWS ER347 Mig & Tig Filler Metal Rod & Wire India AWS Class ER347 Metal Inert Gas (MIG) Welding Kolkata

Aditya Stainless, a well-respected manufacturer and supplier based in Kolkata, India, specializes in providing top-notch AWS Class ER347 MIG and TIG Filler Welding Wire and Rod. This product is designed for exceptional performance when welding stabilized austenitic stainless steels. The ER347 formulation includes columbium (niobium) as a stabilizing agent, which helps prevent intergranular corrosion and carbide precipitation during high-temperature welding. It boasts impressive weldability, arc stability, and resistance to oxidation and corrosion, making it perfect for challenging environments. This filler metal is particularly suited for joining 321 and 347 stainless steels and is commonly used in high-temperature and high-pressure settings like power plants, chemical processing, and aerospace fabrication.

AWS A5.9 ER347 MIG & TIG Welding Filler Rod Manufacturer in Kolkata AWS Class ER347 MIG & TIG Filler Metal Stockist in India, MIG & TIG Filler Rods Kolkata, MIG & TIG Filler Metal Stockist India AWS Class ER347 Tungsten Inert Gas (TIG) Welding India

ER347 is composed of roughly 19–21% chromium, 9–11% nickel, and ≤0.08% carbon, with columbium (Nb) added to stabilize the mixture—typically at eight times the carbon content. The inclusion of niobium significantly boosts resistance to intergranular corrosion and ensures stability under high-heat conditions. Its mechanical properties are impressive, featuring a tensile strength of at least 75,000 psi (520 MPa), yield strength of at least 55,000 psi (380 MPa), and an elongation of around 30%. This filler wire retains its excellent mechanical characteristics even after extended exposure to high temperatures, making it a dependable choice for pressure-retaining and thermally cycled components in demanding environments.

AWS Class ER347 MIG and TIG Filler Welding Wire and Rod Specifications

Classification	AWS A5.9, ER347
Form	MIG spools, TIG cut lengths, Reels and Coils
Type Of Welding	Inert Gas Welding
Current	MIG-DCEP / TIG-DCEN
Diameters	.023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8”
Standard TIG straight lengths are available	36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request.
AWS ER347 MIG & TIG Filler Metal Application & uses	Hardware tools Metallurgy Machinery Construction Shipbuilding Petroleum Chemical plant Power sector Gas Industry

AWS Class ER347 MIG and TIG Filler Welding Wire and Rod Chemical Composition

C	Cr	Ni	Mo	Mn	Si	P	S	Cu	Element	Amount
0.08	19.0-21.5	9.0-11.0	0.75	1.0-2.5	0.30-0.65	0.03	0.03	0.75	Nb	10XC min/1.0 max

AWS Class ER347 MIG and TIG Filler Welding Wire and Rod Mechanical Properties

Yield, kpsi:	57
Tensile Strength, kpsi:	86
Elongation%, min:	35

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Why Choose AWS Class ER347 MIG and TIG Filler Welding Wire and Rod from Aditya Stainless?

Largest Inventory

Customer Support

On Time Deliveries

ISO Certified

Types of AWS Class ER347 MIG and TIG Filler Welding Wire and Rod

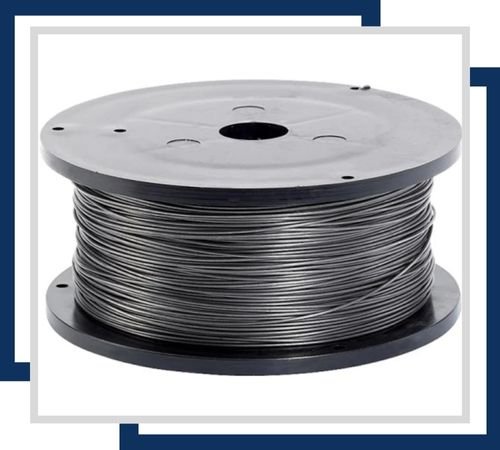

Stainless Steel ER347 MIG Filler Wire

Stainless Steel ER347 MIG filler wire, available in sizes from 0.8mm to 1.6mm, offers excellent corrosion resistance and stability. Ideal for welding stabilized stainless steel in various industrial applications.

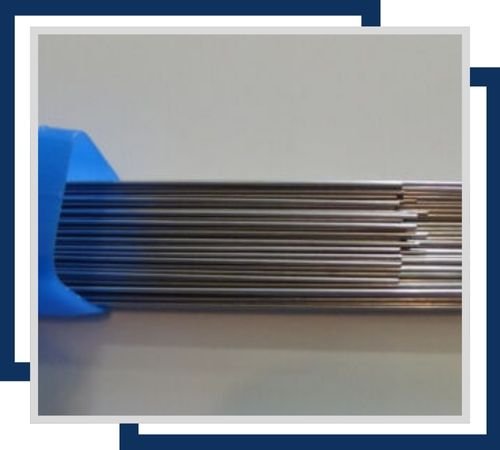

Stainless Steel ER347 TIG Filler Wire

Stainless Steel ER347 TIG filler wire, ranging from 1.0mm to 3.2mm, provides superior corrosion resistance and stabilization. Perfect for precise welding of stabilized stainless steel in critical environments.

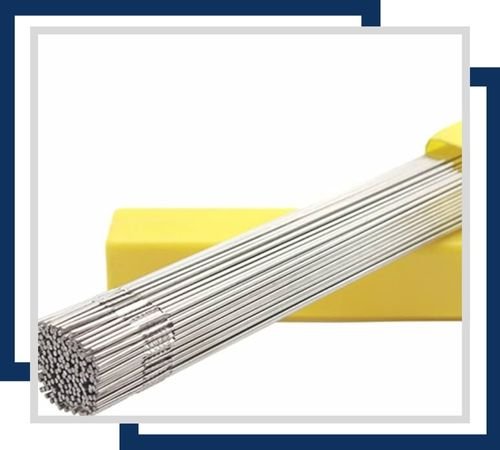

Stainless Steel ER347 TIG Filler Rod

Stainless Steel ER347 TIG filler rod, available in sizes from 1.0mm to 3.2mm, ensures excellent corrosion resistance and stability. Suitable for welding stabilized stainless steel in demanding industrial applications.

We conduct rigorous tests on our AWS Class ER347 MIG and TIG Filler Welding Wire and Rod. To make sure they meet the highest quality standards. Our products undergo thorough various inspections to guarantee their reliability and performance in demanding applications. We also offer prompt delivery to assure our clients receive their orders on time. Maintaining smooth and efficient operations. Our commitment to quality and timely service makes us a trusted partner for all welding requirements.

Stainless Steel Industrial ER347 MIG / TIG Filler Wire Price List in Kolkata, Aws Class ER347 MIG /TIG Filler Welding Wire India, Stainless Steel ER347 Mig & Tig Filler Wire Supplier in Kolkata India, SS ER347 MIG & TIG Filler Metal Distributor in Kolkata, AWS Class ER347 MIG & TIG Filler Metal Exporters India, UNS S34780 AWS Class ER347 MIG and TIG Filler Welding Wire and Rod Kolkata

AWS Class ER347 MIG and TIG Filler Welding Wires and Rods Uses

The AWS ER347 MIG and TIG Filler Wire and Rod are primarily utilized for welding austenitic stainless steels that are stabilized with niobium or titanium, such as the 321 and 347 grades. They excel in high-temperature applications where resistance to thermal fatigue and intergranular corrosion is essential. Common uses include aircraft exhaust manifolds, heat exchangers, pressure vessels, furnace components, and equipment for chemical processing. ER347 is also favored in sectors like power generation, oil and gas, and food processing. The stabilized chemistry guarantees low susceptibility to issues that can arise in these critical applications.
