Home > Electrodes > AWS Class ER385 Mig & Tig Filler Welding Wire & Rod
Aditya Stainless is a trusted manufacturer and supplier based in Kolkata, India, specializing in high-quality AWS Class ER385 MIG and TIG Filler Welding Wire and Rod, also known as Alloy 904L. This product is perfect for welding high-alloy, corrosion-resistant stainless steels. Designed to join both wrought and cast forms of 904L stainless steel, ER385 boasts impressive resistance to strong reducing acids like sulfuric and phosphoric acids, along with a high tolerance for pitting and stress corrosion cracking. Its low carbon content helps prevent intergranular corrosion, making it ideal for chemical processing, pollution control, and marine applications. With ER385, you can expect robust, corrosion-resistant welds that stand the test of time in tough environments.
ER385 filler metal generally consists of 19–23% chromium, 24–26% nickel, 4–5% molybdenum, 1–2% copper, and a maximum of 0.02–0.03% carbon. This distinctive composition ensures excellent resistance to a variety of corrosive substances. In terms of mechanical properties, it offers a tensile strength of at least 80,000 psi (550 MPa), a yield strength of at least 35,000 psi (240 MPa), and an elongation of around 35%. The low carbon content helps avoid carbide precipitation, while the high levels of nickel and molybdenum enhance resistance to pitting and crevice corrosion, particularly in chloride and acidic conditions. ER385 is dependable for both MIG and TIG welding tasks.
| Classification | AWS A5.9, ER385 |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER385 MIG & TIG Filler Metal Application & uses |
|
C | Mn | Si | Cr | Ni | Mo | S | P | Cu | |
Standard | ≤0.025 | 1.00-2.50 | ≤0.50 | 19.5-21.5 | 24.0-26.0 | 4.20-5.20 | ≤0.030 | ≤0.020 | 1.20-2.00 |
Test | 0.013 | 1.93 | 0.21 | 20.5 | 25.10 | 4.67 | 0.003 | 0.012 | 1.69 |
| Tensile Strength (psi) | 86,000 psi (593 MPa) |
|---|---|
| Yield Strength (psi) | 57,000 psi (393 MPa) |
| Elongation (%) | 42% |
Contact us to get a quick quote for your requirement.

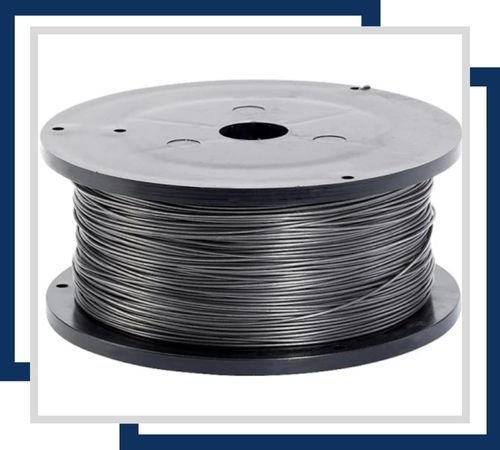

Stainless Steel ER385 MIG filler wire, available in sizes from 0.8mm to 1.6mm, offers excellent corrosion resistance for welding high-alloy stainless steels. Ideal for critical industrial applications.

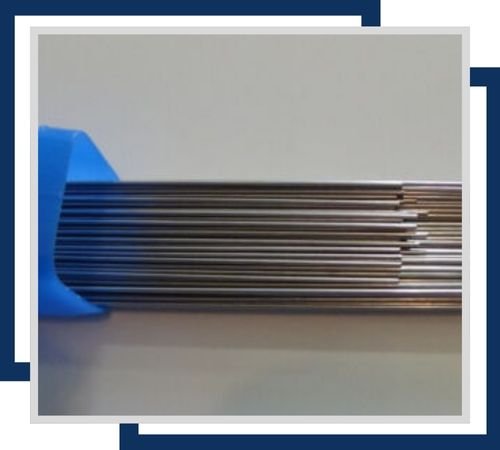

Stainless Steel ER385 TIG filler wire, ranging from 1.0mm to 3.2mm, provides superior corrosion resistance. Perfect for precision welding of high-alloy stainless steels in demanding environments.
Stainless Steel ER385 TIG filler rod, available in sizes from 1.0mm to 3.2mm, ensures excellent corrosion resistance. Suitable for welding high-alloy stainless steels in various industrial applications.
We assure the highest quality for our AWS Class ER385 MIG and TIG Filler Welding Wire and Rod through comprehensive in-house testing and inspections. These products are engineered to provide excellent welding performance with enhanced resistance to corrosion and oxidation at high temperatures. We prioritize timely deliveries, ensuring that our clients receive their orders without delay, maintaining efficiency and reliability in every project.
AWS ER385 MIG and TIG Filler Wire and Rod are mainly utilized for welding Alloy 904L (UNS N08904) stainless steels in extremely corrosive settings. Common applications include equipment for chemical and fertilizer processing, acid production facilities, offshore and marine components, heat exchangers, pulp and paper machinery, and pollution control systems. ER385 shines in environments with strong acids, chlorides, and seawater. It’s also suitable for overlaying and cladding applications where corrosion resistance is crucial. With its outstanding weldability, ER385 is a go-to choice for ensuring durability in challenging conditions.
