Aditya Stainless, a reputable manufacturer and supplier based in Kolkata, India, specializes in high-performance AWS Class ER410NiMo MIG and TIG Filler Welding Wire and Rod. This product is specifically designed for welding martensitic stainless steels that demand exceptional corrosion resistance and strength. It’s perfect for materials like CA6NM and other cast or wrought martensitic grades. With added nickel and molybdenum, this filler metal boosts toughness and minimizes cracking, even in as-welded conditions. ER410NiMo is commonly used in applications that require high hardness, wear resistance, and corrosion protection—think hydroelectric turbine components, valves, pump parts, and other essential equipment in corrosive or high-pressure settings.
ER410NiMo typically consists of about 11.5–13.5% chromium, 4.5–6% nickel, 0.5–1.0% molybdenum, and a low carbon content of around 0.03%. This blend enhances corrosion resistance, especially in wet or mildly acidic environments, while also improving mechanical toughness. You can expect mechanical properties like a tensile strength of at least 90,000 psi (620 MPa), yield strength of at least 65,000 psi (450 MPa), and an elongation of roughly 20–25%. To achieve optimal hardness and toughness, post-weld heat treatment (PWHT) is often recommended. ER410NiMo also provides smooth arc characteristics and excellent fusion in both MIG and TIG processes, making it ideal for high-performance, corrosion-resistant welds in martensitic stainless steels.
| Classification | AWS A5.9, ER410NiMo |
| Form | MIG spools, TIG cut lengths, Reels and Coils |
| Type Of Welding | Inert Gas Welding |
| Current | MIG-DCEP / TIG-DCEN |
| Diameters | .023”, .030”, .035”, .045”, 1/16”, 3/32”, 1/8” |
| Standard TIG straight lengths are available | 36” (914 mm) or 39” (1000 mm) lengths. Other lengths available upon request. |
| AWS ER410NiMo MIG & TIG Filler Metal Application & uses |
|
| C | Cr | Ni | Mo | Mn | Si | P | S | Cu |
| 0.06 | 11.0-12.5 | 4.0-5.0 | 0.4-0.7 | 0.6 | 0.5 | 0.03 | 0.03 | 0.75 |
| Yield, kpsi: | 92 |
| Tensile Strength, kpsi: | 118 |
| Elongation%, min: | 20 |
Contact us to get a quick quote for your requirement.

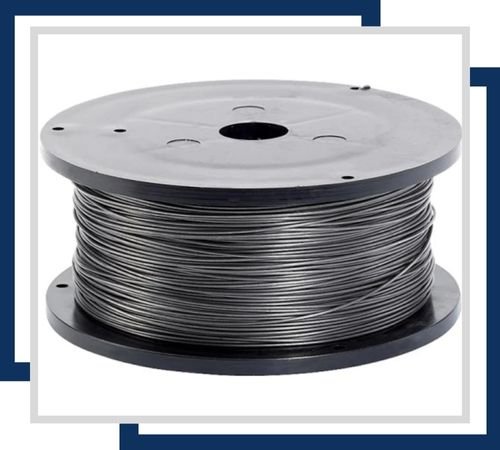

ER410NiMo MIG filler wire provides enhanced toughness and corrosion resistance, ideal for welding high-stress components and tools, ensuring strong, durable welds in demanding environments.

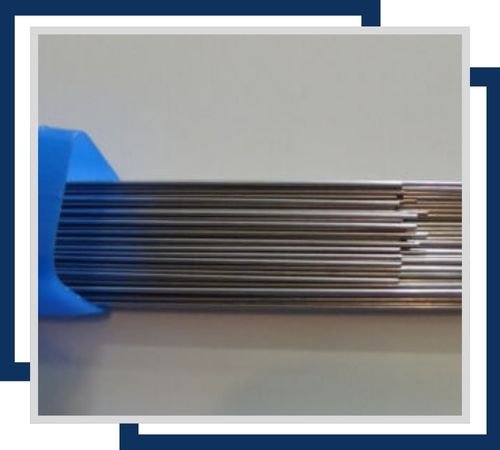

ER410NiMo TIG filler wire offers superior toughness and resistance to corrosion, suitable for welding martensitic stainless steels in applications requiring high durability and performance under stress.

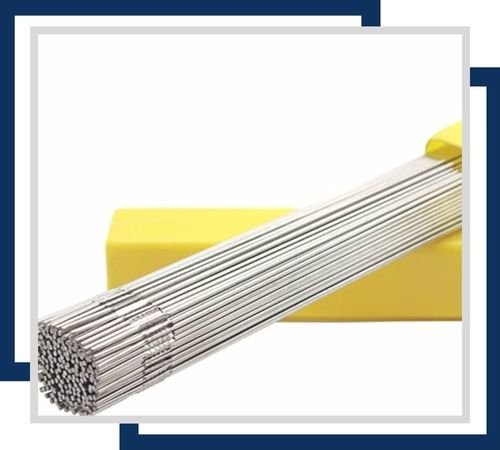

ER410NiMo TIG filler rod delivers excellent toughness and resistance to corrosion, ideal for welding components exposed to high temperatures and severe conditions, ensuring durability and strong welds.
After manufacturing our quality control team conducts a series of destructive and non-destructive tests. Using advanced tools to make sure the performance and reliability of the AWS Class ER410NiMo MIG and TIG Filler Welding Wire and Rod. We then package the products securely and ensure timely delivery to customers providing all necessary documentation at the time of delivery to assure complete transparency.
AWS ER410NiMo MIG and TIG Filler Welding Wire and Rod are perfect for welding martensitic stainless steels, especially CA6NM, in tough environments that require both strength and corrosion resistance. You’ll find it commonly used in hydroelectric turbine blades, valve seats, pump shafts, impellers, and components across the oil and gas, power generation, and chemical processing industries. It’s also utilized in overlay applications for carbon and low-alloy steels that face erosive conditions.
