Aditya Stainless stands out as a reliable manufacturer and supplier of Stainless Steel 415 Sheets and Plates in Kolkata, India, providing dependable solutions for tough structural and mechanical needs. SS 415 is a martensitic stainless steel known for its impressive strength, hardness, and decent corrosion resistance. These sheets and plates are celebrated for their excellent machinability, wear resistance, and stability after heat treatment. Commonly found in industries like tooling, petrochemicals, automotive, and power generation, SS 415 plates come in various thicknesses and finishes, making them perfect for applications that demand durable, hardened components with reasonable corrosion resistance in mild environments.
Stainless Steel 415 is made up of about 12–14% chromium, 0.15% carbon, along with trace amounts of manganese, silicon, sulfur, and nickel. This unique blend allows the material to be hardened through air or oil, striking a balance between hardness, tensile strength, and corrosion resistance. SS 415 boasts a tensile strength of at least 700 MPa, yield strength of at least 450 MPa, and can reach hardness levels of up to 40 HRC after heat treatment. While it may not match the corrosion resistance of austenitic grades, it performs admirably in less severe environments and offers outstanding wear resistance, making it a great choice for high-stress, abrasion-heavy applications.
| Specifications : | ASTM A240 / ASME SA240 |
| Dimensions : | ASTM, ASME and API |
| Standard : | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface : | 2B, 2D, BA, NO.4, NO.8, 8K, Mirror,Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,etc. |
| Finish : | Black,Bright Polished,Rough Turned,No.4 Finish,Matt Finish,BA Finish |
| Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
| Grade | C | Mn | P | S | Si | Ch | Ni | Mo |
| SS 415 | 0.05 max | 0.50-1.00 | 0.030 max | 0.030 max | 0.60 max | 11.5-14.0 | 3.5-5.5 | 0.50-1.00 |
| Tensile Strength R₃ N/mm² | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 |
| 0.2% Offset Yield Strength Rᵖ ≥N/mm² | 520 | 520 | 520 | 520 | 520 | 520 | 520 |
| Elongation in 2 inches, % | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min |
| Grade | Density lbm/in3 | Melting Range(°F) | Thermal Conductivity(BTU-in/hr- ft. °F) | Electrical Resistivity(in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/°F x 10-6 | Specific Heat(BTU/lb/°F) |
|---|---|---|---|---|---|---|---|
| 415 | -at 68°F: 0.280 | 2700 to 2790 | 187 at 212°F | 23.7 at 68°F | 29 | 6.0 at 32 – 212°F | 0.11 at 68°F to 212°F |
| – | – | – | – | – | 7.5 at 68 – 1200°F | – |
Contact us to get a quick quote for your requirement.

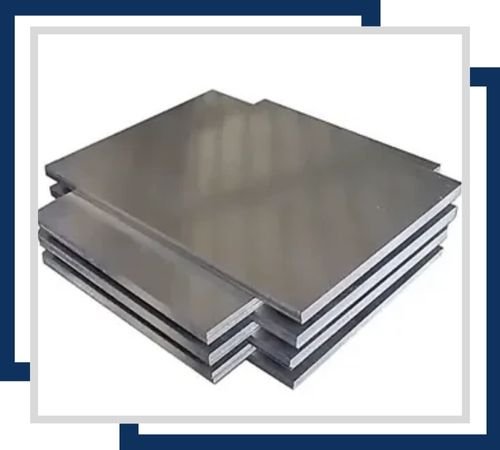

SS 415 Cold Rolled Sheets are stainless steel sheet with a bright surface finish, high strength, and excellent durability. Sheets available in various sizes between 0.3 mm to 3.0 mm thickness range and from 1000 mm to 2000 mm width with suitable applications.

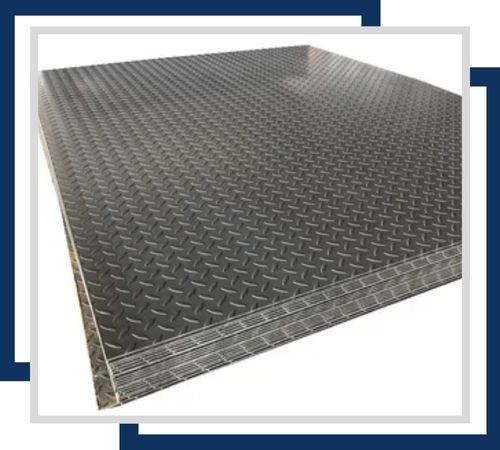

SS 415 chequered plates are stainless steel sheets with raised, textured patterns on them for maximum slip resistance and strength. It is available in various thicknesses and sizes, and it finds its application as a flooring or ramp material as well as an industrial application in the form of excellent corrosion resistance and aesthetic value.

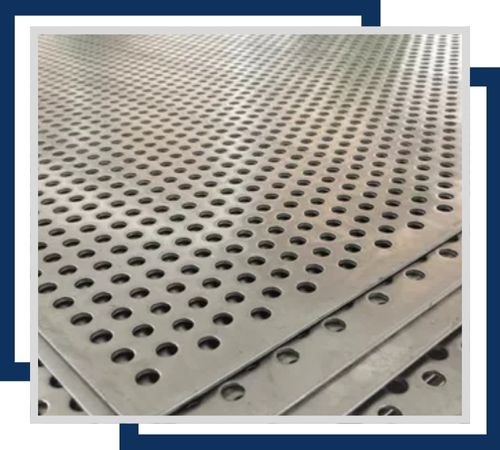

SS 415 perforated plates are of high-quality stainless steel sheets designed with precise holes to provide better ventilation, filtration, and strength. The plates can be available in a variety of sizes, with the standard being 4′ x 8′, or as custom sizes depending on the particular application in industries.

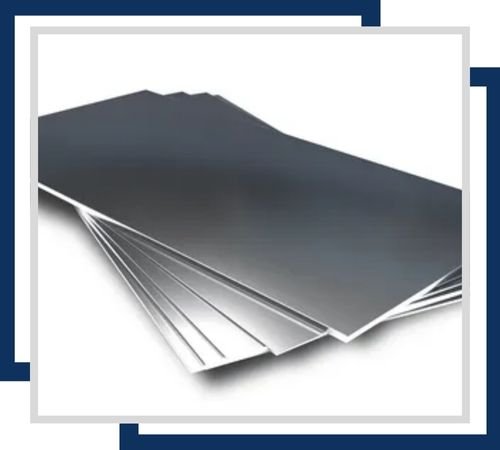

SS 415 Shim Sheets are precision engineered stainless steel sheets for industrial purposes. These have excellent corrosion resistance and strength with sizes ranging from 0.05mm to 5mm thickness and various lengths and widths, which can be customized according to the specific need.

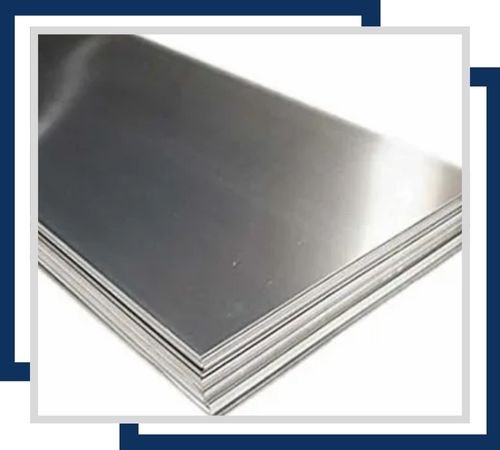

SS 415 Polished Plates are stainless steel sheets of great quality, highly recognized for corrosion resistance, strength, and shine. The SS 415 plates vary in different sizes, normally in the thickness between 0.5mm and 50mm. The product is available in any length and width as per the needs of various industrial applications.
Aditya Stainless maintains a commitment for hassle-free experiences for our esteemed customers. Here, at this company, our high-quality SS 415 Sheet and Plates shall be offered completely documented to create a better buyer-seller market. Documents as commercial invoices, Packing lists, fumigation certificates, Heat Treatment Charts, QA plans, along with the Test Reports done with NABL approvals, these add value in maintaining the genuity and outstanding quality of products produced by this unit. In addition, we provide Stainless Steel 415 Sheets and Plates with various test certificates, such as MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificates, in order to prove our commitment to product excellence and customer satisfaction.
Stainless Steel 415 Sheets and Plates find their way into a variety of applications that require high strength, hardness, and moderate corrosion resistance. You’ll see them in pump shafts, gears, valves, fasteners, knives, and petrochemical equipment. These plates are also essential in the automotive, aerospace, construction, tool-making, and power generation sectors. Thanks to their ability to maintain strength at high temperatures and resist wear, SS 415 plates are perfect for cutting tools, industrial blades, turbine components, and structural supports. Their machinability and heat-treating capabilities also make them a popular choice in various industries.
