Aditya Stainless is the most prominent company dealing with manufacturers and suppliers in the field of high-quality stainless steel products based in Kolkata India. Since the company maintains the quality value, it specialized in providing extensive range stainless steel material such as SS 418 sheet and plates. Our SS 418 products come with excellent corrosion resistance, great durability, and performance in critical situations. Whether it is used in industries, commerce, or architecture, the Aditya Stainless guarantee includes all its products with high-precision and reliable quality to emerge as a one-stop shop for all stainless steel needs.
SS 418 is a martensitic stainless steel, which provides good strength, high hardness, and good wear resistance. It mainly consists of iron, chromium content between 12-14%, and carbon between 0.15-0.25%. This alloy contains small amounts of manganese, silicon, and phosphorus. SS 418 provides excellent corrosion resistance in mildly corrosive environments but not as much resistance as in the case of austenitic grades like SS 304. This grade is utilized in high strength and moderate corrosion resistance applications like automotive, valve components, and machine parts. Mechanical properties: tensile strength 650 MPa hardness up to 45 HRC.
| Specifications : | ASTM B441 / ASME SB196 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |

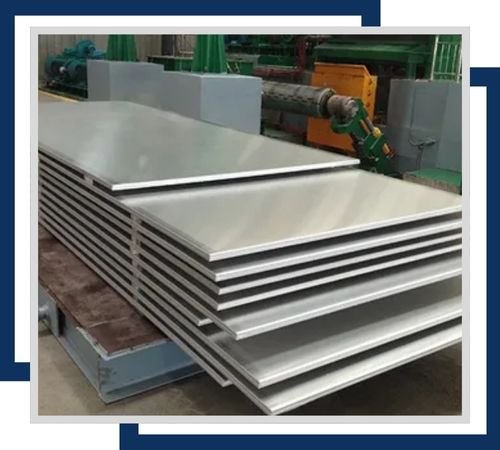

| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Element | Content (%) |
| Iron, Fe | 82 |
| Chromium, Cr | 13 |
| Tungsten, W | 3 |
| Nickel, Ni | 2 |
| Properties | Metric | Imperial |
| Tensile strength | 895 MPa | 130000 psi |
| Yield strength (@strain 0.200 %) | 725 MPa | 105000 psi |
| Modulus of elasticity | 190-210 GPa | 27557- 30457 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 15% | 15% |
| Hardness, Rockwell C | 25 | 25 |
| Density(lb/ft3) | Electrical conductivity(% IACS) | Thermal conductivity(BTU/h-ft-°F) | Specific heat capacity(BTU/lb-°F) | Thermal expansion(µm/m-K) |
| 500 | 2.8% | 15 | 470 | 10 |
Contact us to get a quick quote for your requirement.

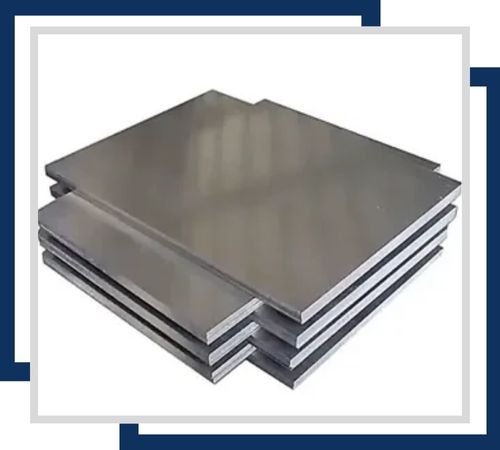

SS 418 Cold Rolled Sheets are stainless steel sheets of excellent strength, durability, and smooth surface finish. Sheets are available in different sizes and usually vary between 0.3mm and 6mm in thickness with widths and lengths according to individual industrial requirements.
SS 418 Chequered Plates are high-quality stainless steel plates with a textured, non-slip surface, ideal for heavy-duty applications requiring durability and traction. The plates are available in sizes from 1mm to 10mm in thickness, with standard lengths and widths.

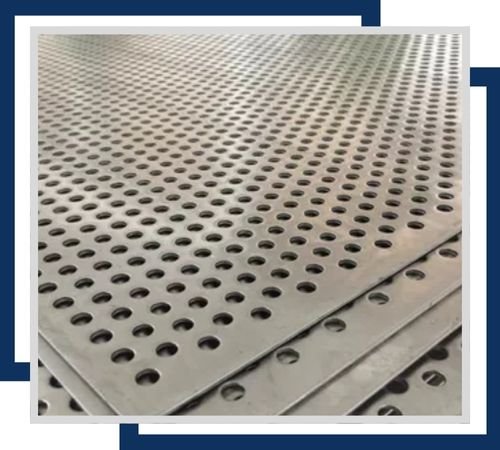

SS 418 perforated plates are of top quality stainless steel sheets which have precise perforations and have industrial applications. It is also available in standard sizes in a thickness of 0.5 mm to 6 mm and hole diameter ranges from 1 mm to 25 mm for great strength and flexibility.

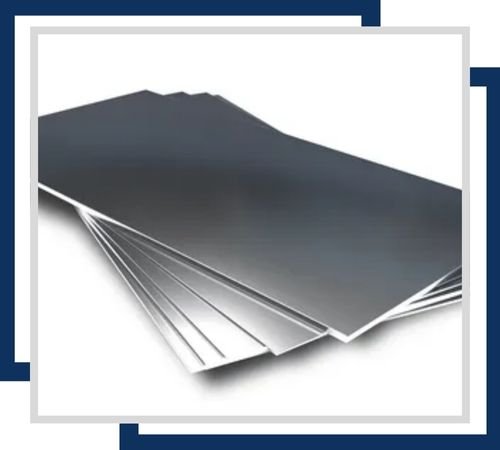

SS 418 shim sheets are precision-engineered stainless steel sheets. They have used gap-filling, alignment, and leveling applications. These are available in sizes varying from 0.05mm to 5mm in thickness and even customized with respect to length and width. They offer excellent corrosion resistance and durability for industrial use.
SS 418 Polished Plate is a finished stainless steel product with excellent resistance to corrosion in the form of a polished product. Plates made from this steel are available in different sizes-from 4′ x 8′ standard commercial sizes to highly customized dimensions designed for multiple industries and architectural features.
Aditya Stainless is dedicated to providing an outstanding customer experience with full documentation on our high-quality Stainless Steel 418 Sheets and Plates. We provide crucial documents such as the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test reports. These documents authenticate the superior quality of our products, which instills confidence in our customers. Additionally, we provide test certificates, including MTC per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate, which speaks for our customer-first approach and never-ending pursuit of excellence.
SS 418 sheets and plates are used where high strength and hardness combined with moderate corrosion resistance are needed. Some common uses include parts of automotive, aerospace, and industrial machinery like shafts, valves, and pumps. It can also be used for tooling, knives, and other applications where there is a need for wear resistance. With medium corrosion resistance, it is useful for parts subject to mild corrosive environments and, in the case of parts, food processing equipment and chemical industries. The application of SS 418 lies in the production of parts which require wear and strength.
