Aditya Stainless is a well-respected manufacturer and supplier of high-quality Stainless Steel 422 Sheets and Plates, proudly based in Kolkata, India. With a solid reputation for excellence and precision, the company provides products that meet global standards for a variety of industrial uses. Their SS 422 sheets and plates are crafted to deliver outstanding strength, impressive high-temperature resistance, and top-notch corrosion protection. Supported by state-of-the-art manufacturing facilities and rigorous quality checks, Aditya Stainless guarantees that their products fulfill client needs in sectors such as power generation, aerospace, and petrochemicals. Renowned for their reliability and prompt delivery, they cater to customers throughout India with competitive pricing and tailored solutions.
Stainless Steel 422 Sheets and Plates are martensitic stainless steels that contain around 12% chromium, 1% molybdenum, along with trace amounts of tungsten, vanadium, and nickel. This unique blend provides excellent oxidation resistance and mechanical strength, particularly in high-temperature settings. SS 422 boasts a tensile strength of up to 655 MPa, a yield strength of about 415 MPa, and an elongation of 18%. With a hardness of up to 240 HB, these sheets and plates maintain their shape under thermal stress, making them perfect for high-performance industrial applications where toughness and corrosion resistance are essential.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |

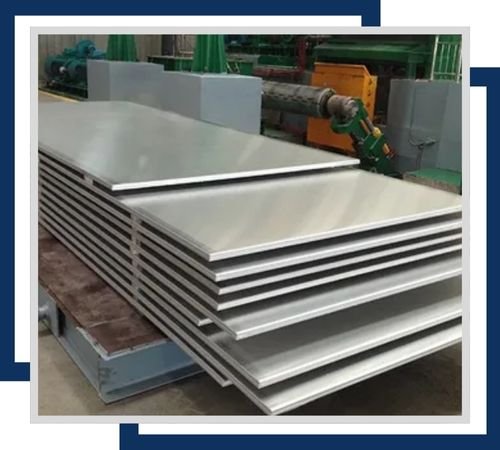

| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |
| Surface Finish : | Plain, Brushed, Cladded |
| Cr 11.0 – 12.5% | Mo 0.9 – 1.30% | W 0.9 – 1.30% | Mn 0.50 – 1.0% | Ni 0.50 – 1.0% | |||||
| Si 0.50% Max | V 0.20 – 0.30% | C 0.20 – 0.25% | P 0.025% Max | Fe Balance |
| Property | Minimum | Maximum | |||||||
| Yield Strength Range (Rp0.2 Offset) (ksi) | 97 | 130 | |||||||
| Tensile Strength Range (Rm) (ksi) | 130 | 160 | |||||||
| Elongation (AL=5 x Ø) | 15.0% | 17.0% | |||||||
| Hardness, Rockwell (C) | – | 21 | |||||||
| Modulus of Elasticity (GPa): 76 | |||||||||
| Machineability General Index: – | |||||||||
| Density (lb/ft3) | Electrical conductivity (% IACS) | Thermal conductivity (BTU/h-ft-°F) | Specific heat capacity (BTU/lb-°F) | Thermal expansion (µm/m-K) |
| .2817 | 4.7% | 14 | 0.11 | 10 |
Contact us to get a quick quote for your requirement.

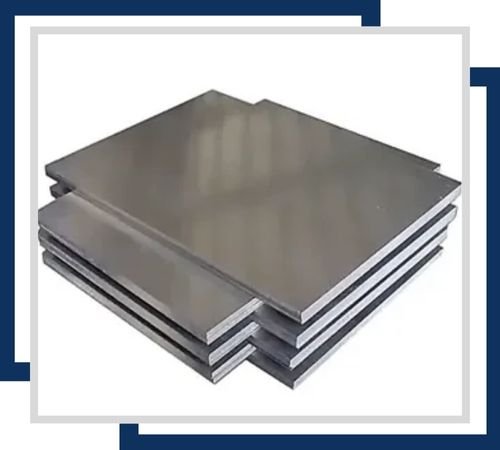

SS 422 cold rolled sheets are stainless steel material that is strong, durable, and furnished with a smooth surface. These sheets are available in various thicknesses, from 0.1mm to 6mm and can be manufactured with the desired width and length for any industrial usage.

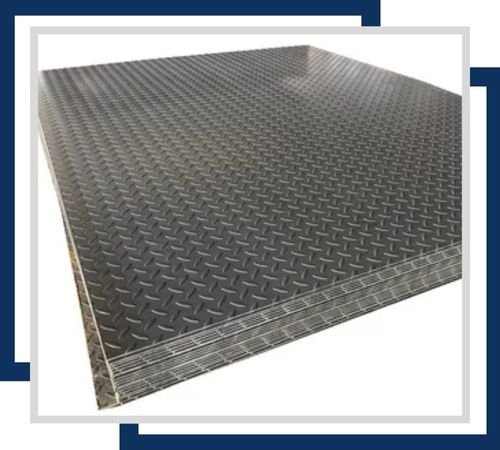

SS 422 chequered plates are highly durable stainless steel sheets with a raised design that increases grip and limits slipping. Used for flooring, walkways, and other industrial applications, chequered plates vary in sizes but are usually 2mm to 8mm thick.

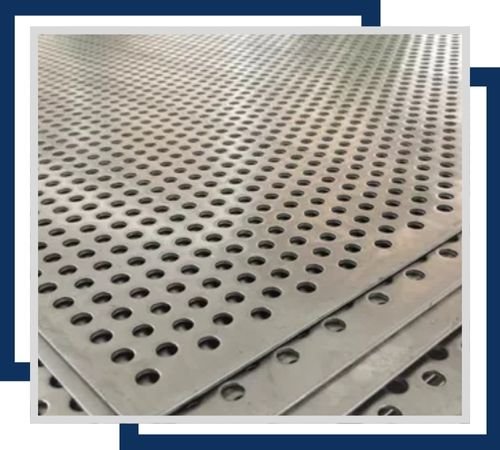

SS 422 perforated plates are stainless steel sheets designed with precision holes for industrial use. The durability and corrosion resistance of these plates are excellent and usually available in sizes from 0.5mm to 12mm in thickness and in a customizable hole pattern, making them versatile in performance.

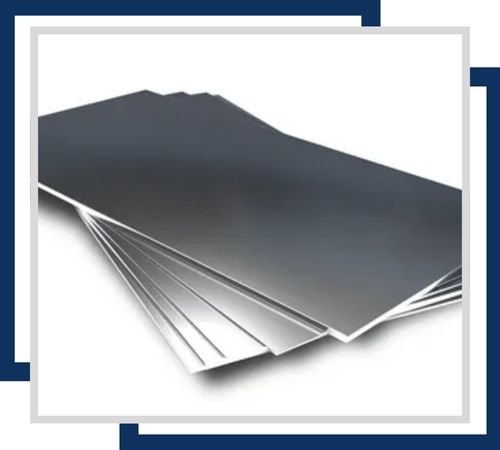

These are thin sheets in stainless steel 422, precision engineered to withstand excellent corrosion resistance and high temperatures. They are usually found in sizes 0.1mm to 5mm in thickness. There is always a need to make precise alignment and gap filling in several industrial applications.

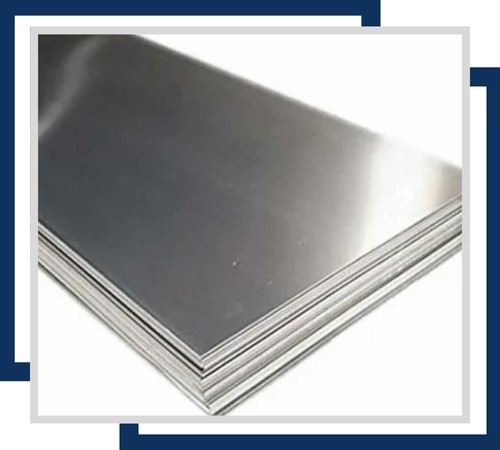

SS 422 Polished Plates are most resistant to corrosion yet very strong and offer a finishing finish quality. Known to be of high quality, the plates vary in size, and may differ in thickness that can range from 3mm up to 100mm, thus giving versatility to various industries.
Aditya Stainless is committed to delivering a seamless customer experience by providing complete documentation for the Stainless Steel 422 Sheet and Plate products, ensuring top-notch quality. Commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plans, and NABL-approved lab test reports are given from Aditya Stainless. These papers are proof of our authenticity and superior quality products. Furthermore, we provide test certificates for our Stainless Steel 422 Sheets and Plates, which include MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates, which demonstrate our customer-centric approach and excellence.
Aditya Stainless’s Stainless Steel 422 Sheets and Plates are widely utilized in industries that demand materials capable of withstanding extreme conditions. They find applications in steam turbine components, aerospace engine parts, high-temperature furnace linings, petrochemical processing equipment, and valve bodies. Their exceptional heat resistance makes them ideal for power plant installations and rotor blade manufacturing. In Kolkata and beyond, these SS 422 sheets and plates are also favored for creating heavy-duty structural components in engineering projects where durability and reliability are paramount.
