Aditya Stainless has built a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 201 Sheets and Plates right here in Kolkata, India. With years of experience and cutting-edge manufacturing techniques, we provide a wide array of SS 201 Sheets and Plates tailored to meet various industrial demands. Our products are celebrated for their exceptional surface finish, durability, and corrosion resistance, making them perfect for both decorative and structural uses. Whether you need thin sheets or robust plates, Aditya Stainless delivers customized solutions that uphold the highest quality standards, ensuring dependable performance for industries across India and beyond.
Stainless Steel 201 Sheets and Plates are made from an austenitic chromium-nickel-manganese alloy, featuring around 16-18% Chromium, 3.5-5.5% Nickel, and 5.5-7.5% Manganese. This unique blend provides outstanding formability and corrosion resistance in mild environments. The mechanical properties include a minimum tensile strength of 520 MPa, a yield strength of at least 275 MPa, and an elongation of 40% over 50mm. With a density of 7.8 g/cm³, these sheets and plates can handle intermittent service temperatures up to 870°C, making them ideal for cost-effective yet high-performance applications.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | JIS, AISI, ASTM, GB, DIN, EN |
| Range | : | 1000/1219/1500/2000mm,etc |
| Conventional common size | : | 4 inch X 8 inch ,10 inch x 5 inch |
| Thickness | : | 0.2 mm to 20mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grades | : | SS 201 UNS S20100 |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi |
| Yield strength (longitudinal at room temperature) | 301 MPa | 43700 psi |
| Compressive yield strength | 365 MPa | 52900 psi |
| Elastic modulus | 197 GPa | 28573 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (longitudinal at room temperature) | 56% | 56% |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
Contact us to get a quick quote for your requirement.

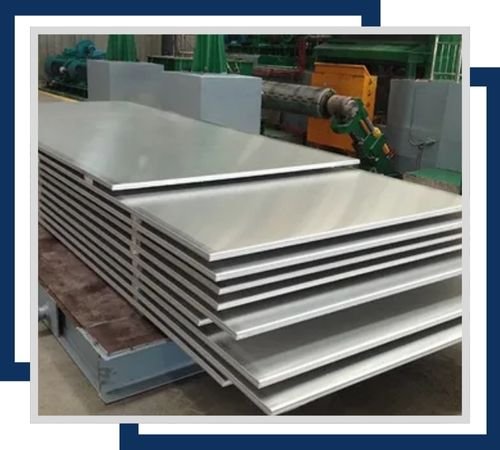

Stainless Steel 201 hot rolled plates are resistant to corrosion and are used in various structural applications. They are available in sizes from 6mm to 100mm thick, and can be ordered to any size.

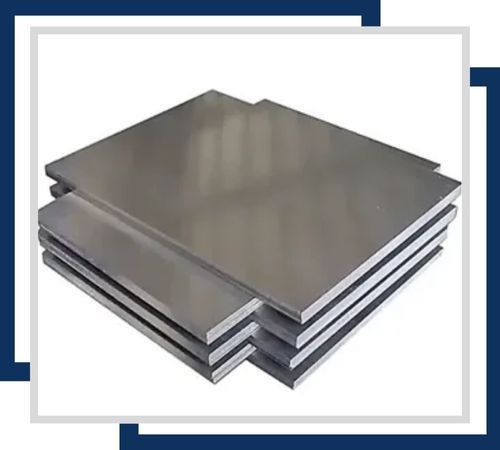

The stainless steel 201 cold rolled sheets offer excellent corrosion resistance and a smooth surface finish. They are available in the thickness range of 0.3mm to 3mm and widths ranging from 1000mm to 2000mm, thus applicable for various purposes.
Stainless Steel 201 chequered sheets are used for flooring and other high-traffic areas due to their improved slip resistance and durability. These sheets are available in thicknesses of 1mm to 6mm and standard sizes of 1000mm x 2000mm.

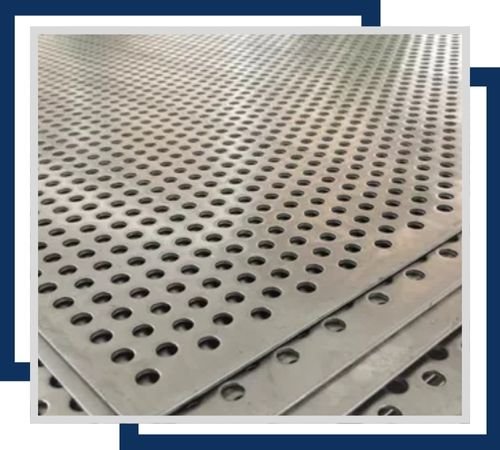

Stainless Steel 201 perforated sheets have outstanding corrosion resistance and find applications for purposes of ornamentation and function. They are also available with holes of various diameters and sizes, commonly within the range of 0.5mm to 6mm in thickness, and sizes from 1000mm x 2000mm.

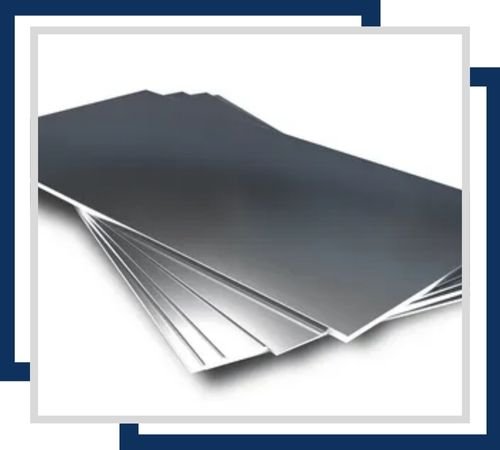

Stainless Steel 201 shim plates possess good resistance against corrosion and accurate thickness for spacing and alignments. It is generally available in thickness ranging from 0.1mm to 5mm along with sizes up to 1000mm x 2000mm.

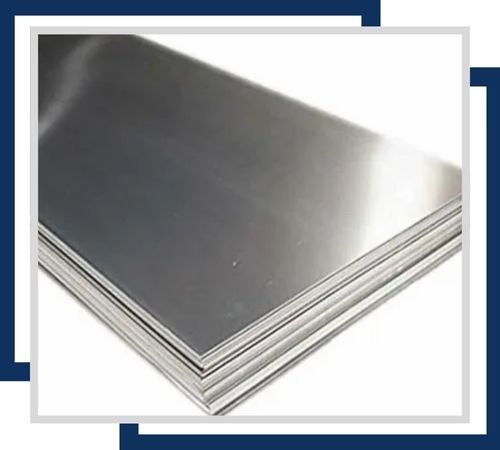

Stainless Steel 201 Polished Sheet and Plates have high-quality reflective finishes. It has good strength at high temperatures that offer abrasion and corrosion resistance in applications having processes.
Aditya Stainless assures hassle-free delivery while giving detailed documents regarding high-quality Stainless Steel 201 Sheets and Plates. It issues a commercial invoice, a packing list, fumigation certificate, heat treatment chart, quality assurance plan, and an NABL-approved lab test report that verify the genuinity and exceptional quality of products and help generate trust in its valuable customers. In addition, our Stainless Steel 201 Sheets and Plates are offered with various test certificates, which include MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. The certifications show how we are completely customer-centric as well as strongly committed to quality products.
Stainless Steel 201 Sheets and Plates find extensive use across various industries, including food processing, kitchen equipment manufacturing, automotive, architecture, chemical processing, and transportation. In Kolkata, they are particularly favored for crafting kitchenware, sinks, panels, decorative trims, roofing, and siding. Their impressive strength and moderate corrosion resistance make them well-suited for environments with limited exposure to moisture and chemicals. Additionally, SS 201 Sheets and Plates are utilized in pressure vessels, storage tanks, and industrial machinery, providing cost-effective solutions without sacrificing quality or performance.
