Aditya Stainless has earned a solid reputation as a reliable manufacturer and supplier of high-quality Stainless Steel 202 Sheets and Plates right here in Kolkata, India. We take pride in providing top-notch SS 202 Sheets and Plates that are built to last, offering great durability, resistance to corrosion, and impressive mechanical strength. Our diverse product range features both hot-rolled and cold-rolled sheets, chequered plates, and even custom sizes tailored to meet various industrial needs. With state-of-the-art manufacturing facilities and rigorous quality control, we guarantee that every product meets international standards. Serving clients from a variety of sectors, Aditya Stainless has become the go-to choice for Stainless Steel 202 Sheets and Plates in India.
Stainless Steel 202 Sheets and Plates are crafted from a budget-friendly austenitic chromium-nickel-manganese alloy, containing 17-19% Chromium, 4-6% Nickel, and 7.5-10% Manganese. This unique blend provides decent corrosion resistance, solid toughness, and excellent formability. The mechanical properties boast a minimum tensile strength of 515 MPa, a yield strength of 275 MPa, and an elongation of 40% over 50mm. With a density of 7.80 g/cm³, SS 202 maintains its strength even at elevated temperatures, reaching up to 870°C intermittently. These characteristics make SS 202 Sheets and Plates perfect for general engineering and industrial applications.
| Item | 202 Stainless Steel Plate (Hot rolled, cold rolled) |
| Standard | JIS, AISI, ASTM, GB, DIN, EN |
| Range | 0.5 mm To 150mm |
| Material | 202 SS Plates / Sheets / Coil |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Thickness | 0.1 to 200 mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Brand | Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin |
| Finish | Hot rolled sheet (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Element | Content (%) |
| Iron, Fe | 68 |
| Chromium, Cr | 17- 19 |
| Manganese, Mn | 7.50-10 |
| Nickel, Ni | 43620 |
| Silicon, Si | ≤ 1 |
| Nitrogen, N | ≤ 0.25 |
| Carbon, C | ≤ 0.15 |
| Phosphorous, P | ≤ 0.060 |
| Sulfur, S | ≤ 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 515 MPa | 74694 psi |
| Yield strength | 275 MPa | 39900 psi |
| Elastic modulus | 207 GPa | 30000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 40% | 40% |
Contact us to get a quick quote for your requirement.

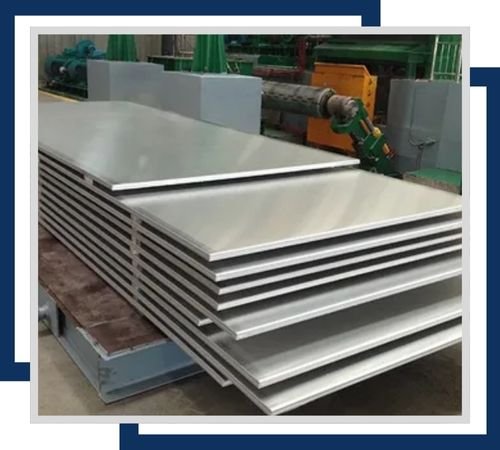

Stainless Steel 202 Hot Rolled Plates are available in thickness ranges starting from 4mm up to 150mm. The plates are rolled at high temperatures to give them more malleability and to easily form their shape. The product has good resistance to corrosion and is applied in durability and strength-based applications.

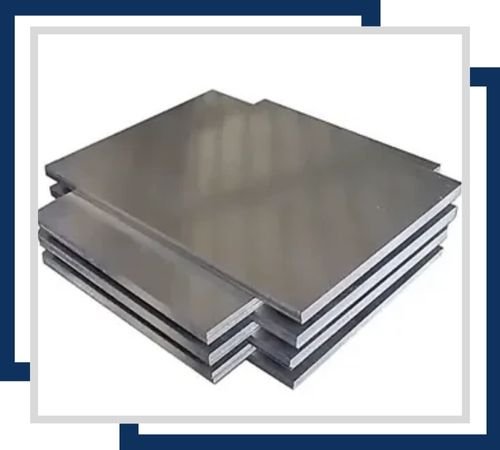

Stainless Steel 202 Cold Rolled Plates are processed by cold rolling of steel. These are a smoother and closer tolerance plate in comparison with the hot rolled ones. Good resistance to corrosion qualifies them as highly suitable for high precision requirements as well as providing an aesthetic-looking surface finish for applications.

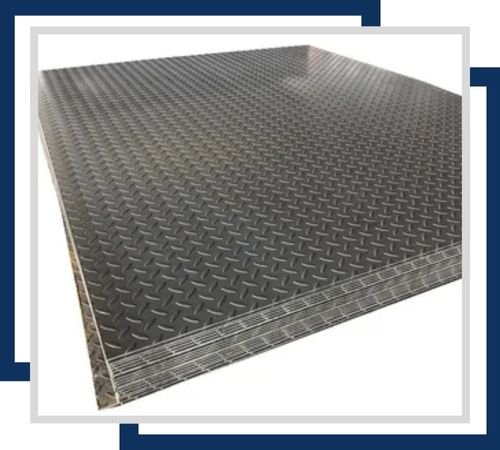

Stainless Steel 202 Chequered Sheets are offered in various thicknesses, from 1.2mm to 8mm. These sheets have a raised pattern, which is slip-resistant and suitable for flooring or walkways. Their inherent corrosion resistance will prove to be long-lasting even in adverse environments.

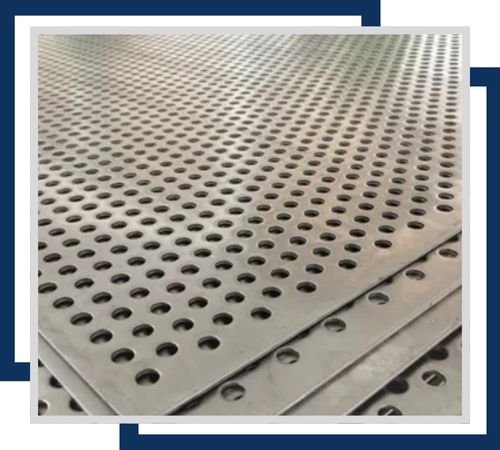

Stainless Steel 202 Perforated Sheets are manufactured in thicknesses ranging from 0.3mm to 8mm and are available in various hole patterns and sizes. These sheets are used for filtration, ventilation, and decorative purposes because of their excellent strength and corrosion resistance. The perforations reduce weight while maintaining structural integrity.

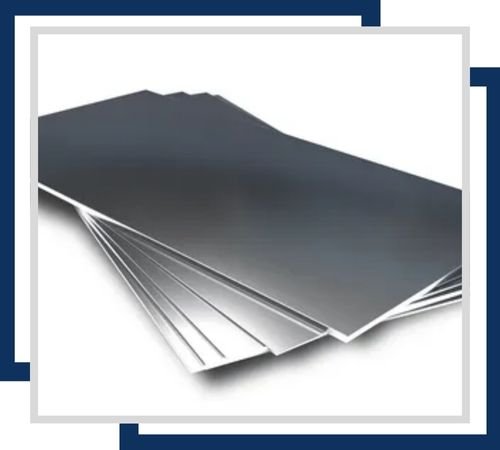

Stainless Steel 202 Shim Sheets are available in thicknesses from 0.05mm to 3mm. These sheets are precision-engineered for alignment and leveling applications. Excellent corrosion resistance ensures reliable performance in various industrial environments.

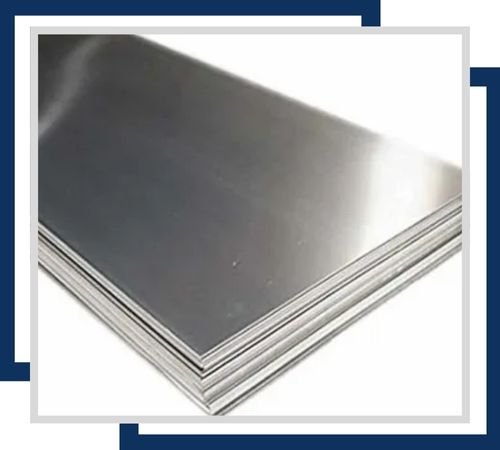

202 Polished Sheets and Plates offering good corrosion resistance, with excellent reflective appearance. Range from 0.5 to 12 mm thick and are up to 1500 mm x 3000 mm. Use for visual or architectural ends.
Aditya Stainless offer a hassle-free experience for customer with complete documentation of our top-grade Stainless Steel 202 Sheets and Plates. Documents like commercial invoices, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test reports are all that we have provided for the products so that people believe in and deal with us, because these authenticate and give excellence to our product. Additional test certificates, such as MTC according to EN 10204/3.1b, PMI Test Certificate, 100 percent radiography test report, and Third-Party Inspection Certificate accompany our Stainless Steel 202 Sheets and Plates. These reflect our focus on the customers and our pursuit for excellence in our products.
Stainless Steel 202 Sheets and Plates find their way into a wide range of applications that demand high mechanical strength and moderate corrosion resistance. They are commonly used in industries such as construction, kitchenware, railway coaches, architectural panels, chemical processing, and automotive. In Kolkata and throughout India, SS 202 Sheets are particularly popular for crafting storage tanks, kitchen appliances, industrial machinery, and decorative panels. The plates are also extensively utilized in railway platforms, transport vehicles, and food processing equipment, thanks to their excellent weldability and formability. Their affordability and durability make them a fantastic choice for various environments.
