Aditya Stainless is one of the renowned manufacturers and suppliers in Kolkata India, specializing in the high-quality products of stainless steel. Aditya Stainless, following the motto of excellence, is offering a wide variety of products, one of which includes Stainless Steel 304H Flanges. Such flanges are extremely strong, hard, and resist corrosion; they are, therefore, used in many high-temperature applications in chemical processing, oil, and gas industries and power generation. Aditya Stainless has assured accurate manufacture and strict quality control standards, providing some remedy for domestic markets along with international ones. Customer satisfaction makes the firm one of the trusted names in this industry.
Stainless Steel 304H Flanges is a high-carbon version of 304 stainless steel. It is intended for high-temperature applications. Its composition consists of 18-20% chromium, 8-10.5% nickel, and up to 0.04-0.10% carbon, along with trace elements of manganese, silicon, phosphorus, and sulfur. This alloy provides excellent corrosion resistance, especially in acidic and chloride environments. It has higher tensile strength (515-720 MPa) and yield strength (205 MPa) than 304, and it has a moderate hardness of 201 HB. It is generally used in chemical, petrochemical, and power generation industries for flanges, fittings, and other high-temperature applications because of its good weldability and formability.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We provide high-grade 301L stainless steel flanges, stringently tested for durability, strength, and resistance. Each one goes through thorough testing including chemical composition analysis, mechanical property analysis, and dimensional verification before we present these to the market with high quality performance. Appropriate certifications accompany every flange that will guarantee conformance with international standards. Flanges designed for efficiency and reliability meet any criterion set for applications in a variety of industries. With superior material quality and precise manufacturing, our 301L stainless steel flanges provide exceptional performance and durability in meeting different demanding requirements in various industries.

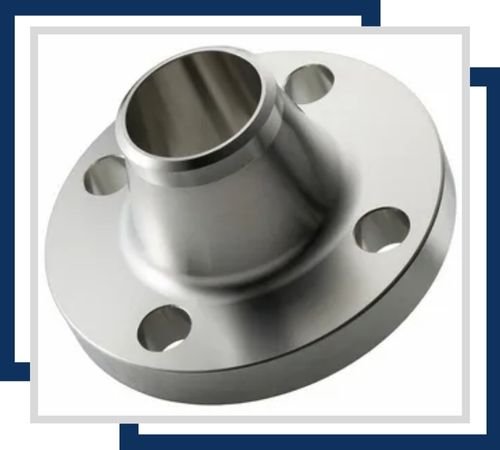

SS 304H long weld neck flanges are designed for high-stress applications, featuring a long tapered neck that provides a strong, continuous weld connection. They offer excellent strength and resistance to leakage.

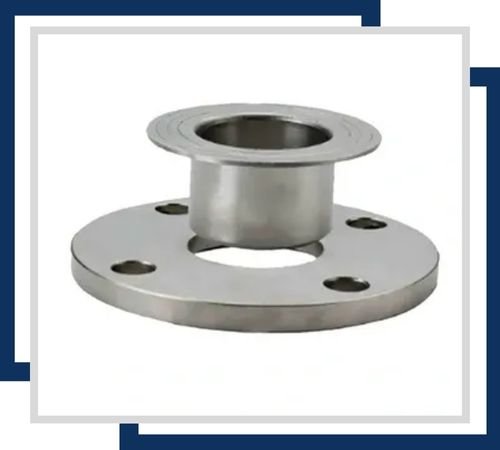

SS 304H lap joint flanges are versatile components designed for ease of assembly and disassembly. They feature a loose fit, allowing for easy alignment and maintenance, with excellent resistance to corrosion.
SS 304H reducing flanges are used to connect pipes of different diameters, providing a smooth transition between sizes. They ensure a secure, leak-proof joint while offering strong corrosion resistance and durability.
Stainless Steel 304H flanges are primarily for high-temperature applications, in which the base material is provided with good corrosion resistance and the ability to oxidize at raised temperatures. Major applications include those in power generation, petrochemical, chemical processing, oil, and gas industries where connections are required on pipes, valves, pumps, and other such equipment. Higher carbon content in 304H imparts strength at elevated temperatures. These flanges are therefore very suitable for steam lines, heat exchangers, boilers, and pressure vessels. They are resistant to corrosion and durability is good, even in hostile environments, which means reliability in critical industrial systems.
