Home > Sheet and Plates > Stainless Steel 305 Sheet and Plates
Aditya Stainless is leading manufacturer and supplying stainless steel across Kolkata India. Commit to excellence in specializing a variety of stainless steel 305 sheet and plate ,sheets and plate products which would ensure that quality of strength can withstand long intervals, be safe against corrosion conditions, and a perfect visual presence that the diversity of industry of construction, automobile industry, manufacturing processes. Aditya Stainless ensures precision in every product manufactured, with unparalleled performance and reliability. We are proud of our timely delivery and customer satisfaction, making us a trusted partner in the stainless steel sector.
Stainless Steel 305 consists of 18-20% chromium, 8-10% nickel, and a small percentage of manganese, silicon, and carbon, which provides good corrosion resistance as well as good formability. The carbon level is low, so the alloy is resistant to welding carbide precipitation; its mechanical properties are a tensile strength of 515-700 MPa, yield strength of 205 MPa, and elongation of 40%. The material shows good workability to be deep drawn and shaped. It is also non-magnetic in the annealed condition, having good resistance against oxidation and pitting, particularly in aggressive environments.
| Element | 305 |
| Carbon | 0.12 |
| Chromium | 17.0-19.0 |
| Nickel | 10.5-13.0 |
| Manganese | 2.00 |
| Silicon | 0.75 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Property | 305 |
| Yield Strength, min. (ksi) | 25 |
| Tensile Strength, min. (ksi) | 70 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 88 |
Contact us to get a quick quote for your requirement.

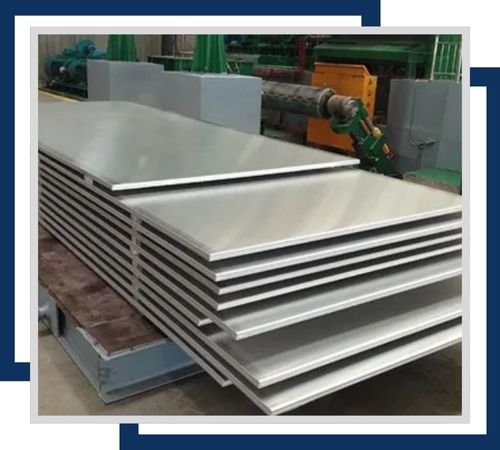

The 305 stainless steel in hot rolled sheets is corrosion-resistant, strong, and versatile. These sheets are usually available in various thicknesses between 1.5mm and 25mm and up to 2000mm in width. Ideally, they find applications in heavy-duty sectors and structural elements.

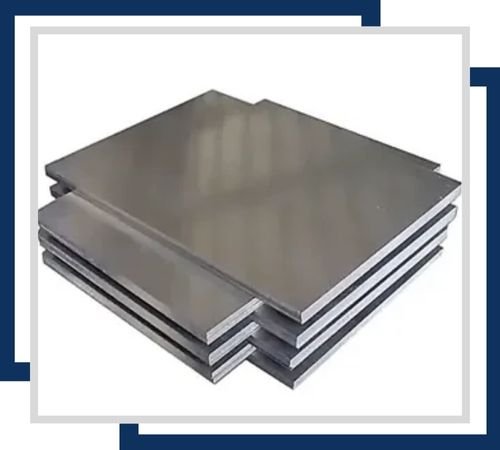

These cold-rolled plates have excellent corrosion resistance and a smooth, polished surface. They are available in thicknesses from 0.3mm to 3mm and widths up to 1500mm and are widely used in automotive, kitchen, and architectural applications.

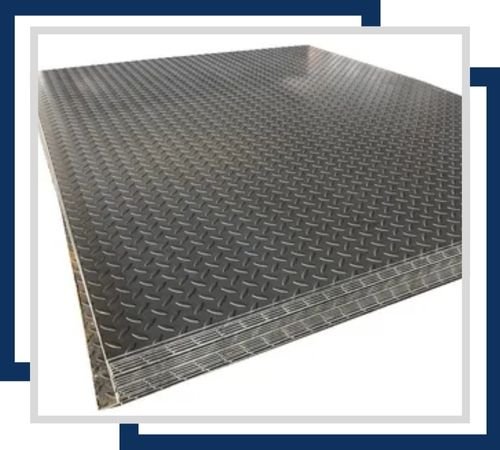

Stainless Steel 305 chequered plates are surface patterned with slip resistance; they have a good corrosion-resistant property. It is available in 2mm to 10mm thickness and 1250mm width for use in flooring and stair treads.

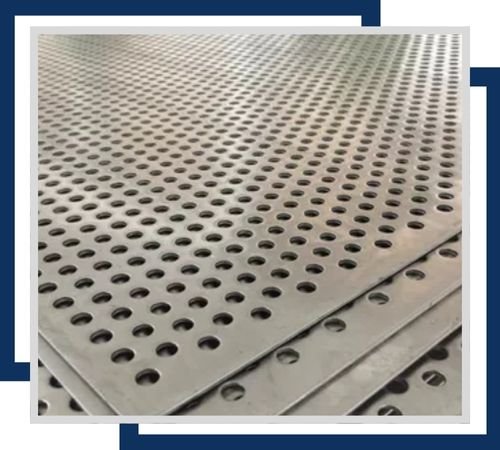

The perforated stainless steel 305 sheets have been specially designed to exhibit excellent corrosion resistance, having holes for ventilation and aesthetic purposes. They usually vary in sizes ranging from 0.5mm to 6mm thickness. The sheet may be ordered as per required dimension and hole pattern.

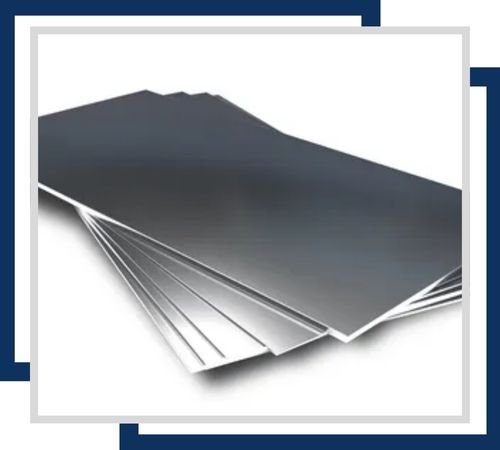

Used for precise spacing and levelling, these shim sheets provide superior corrosion resistance. These are available in thicknesses ranging from 0.1mm to 3mm and in various dimensions and are ideal for mechanical and structural applications where exact tolerances are required.

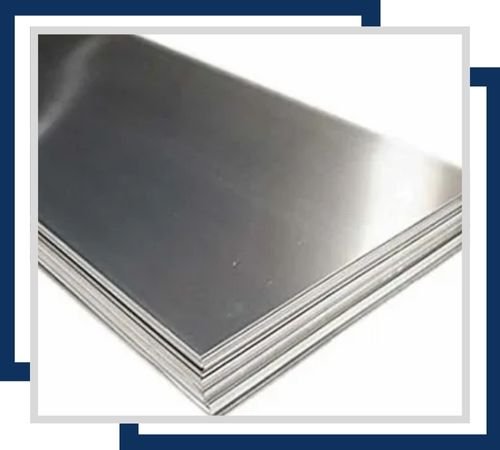

Known for their excellent corrosion resistance and aesthetic appeal, polished plates come in thickness from 0.5mm up to 50mm and up to 2000mm width. They are mainly used for decorative and high-visibility applications where a desired high-gloss finish is achieved.
Aditya Stainless promises superior customer satisfaction supplemented by thorough documentations of Stainless Steel 305 Sheets and Plates. The documentations that our company offers contain the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. All the documents authenticate products for superiority qualities and thereby are helpful in attaining the utmost trust from all valued customers. We also provide Stainless Steel 305 Sheets and Plates along with various test certificates, which include MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates reflect our customer-focused approach and our commitment to continuous product excellence.
The most common applications for stainless steel 305 sheet and plates are the ones that call for high resistance to corrosion with excellent formability. These can be found extensively in the food processing, pharmaceutical, and chemical industries because these materials resist oxidation and are also easy to clean. They have also been adopted in architectural designs, kitchen appliances, and other medical equipment based on their appeal and durability. The 305 is particularly valuable since it is well suited to corrosion resistance in seawater environments due to its natural resistance to extremely high temperatures that can be very suitable for tanks, heat exchangers, and piping.
