Aditya Stainless, a reputable manufacturer and supplier located in Kolkata, India, specializes in high-quality Stainless Steel 310 Nuts that are perfect for extreme temperatures and corrosive settings. Crafted from top-grade stainless steel, these nuts boast exceptional resistance to oxidation and scaling, even at elevated temperatures. Renowned for their mechanical strength and durability, SS 310 nuts are produced in line with international standards and come in a variety of sizes and thread specifications. They find extensive use in heat treatment, power plants, chemical processing, and furnace applications, ensuring secure fastening in demanding, high-temperature environments.
Stainless Steel 310 Nuts are made up of 24–26% chromium and 19–22% nickel, along with low carbon content and trace amounts of manganese, silicon, and phosphorus. This high-alloy austenitic stainless steel offers remarkable strength and stability, featuring a tensile strength ranging from 515 to 750 MPa, a yield strength of 205 MPa, and an elongation of about 40%. These characteristics enable SS 310 nuts to maintain their mechanical integrity at temperatures reaching up to 1100°C, making them ideal for securing components in thermal and corrosive conditions where standard stainless steel might not hold up.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of Stainless Steel Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard SS Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 SS Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated Stainless Steel Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | Stainless steel : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| Element | SS 310 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Rockwell B (HR B) max Hardness | 95 |
| Brinell (HB) max Hardness | 217 |
Contact us to get a quick quote for your requirement.

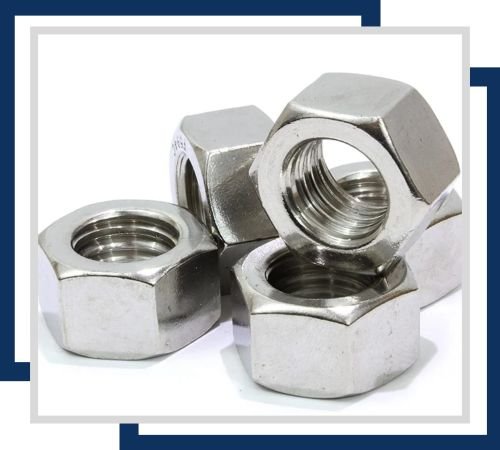

A corrosion-resistant product, Stainless Steel 310 nuts are available in sizes from M6 to M64. They are designed for high-temperature applications, providing excellent resistance to oxidation and durability in extreme heat environments.

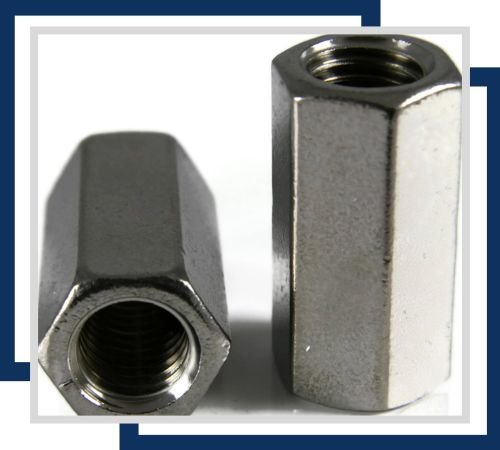

A corrosion-resistant product, Stainless Steel 310 coupling nuts, available in sizes from M6 to M36, connect two male threads securely. Their high-temperature resistance makes them ideal for use in furnace and heat exchanger applications.

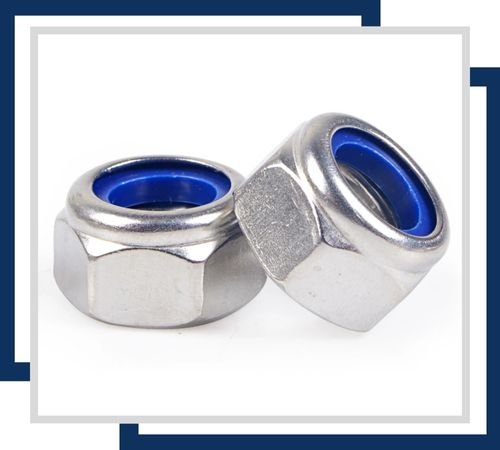

A corrosion-resistant product, Stainless Steel 310 nylon insert nuts, or lock nuts, come in sizes from M3 to M36. The nylon insert prevents loosening under vibration, and the stainless steel provides heat and oxidation resistance for high-temperature environments.

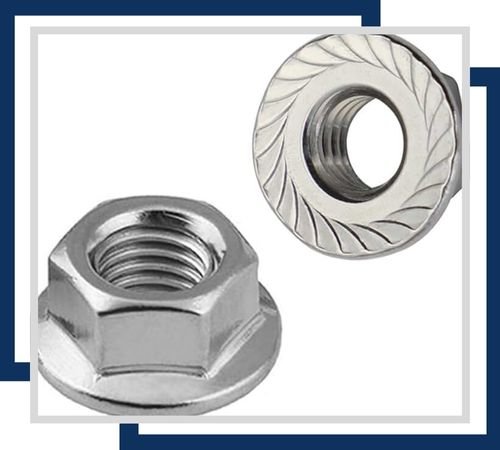

A corrosion-resistant product, Stainless Steel 310 flange hex nuts feature an integrated flange and are available in sizes from M5 to M20. They offer superior load distribution and stability in high-temperature applications, such as in industrial furnaces.
A corrosion-resistant product, Stainless Steel 310 heavy hex nuts are available in sizes from M10 to M48. Their increased thickness provides superior strength and durability, ideal for heavy-duty applications in extreme heat conditions.

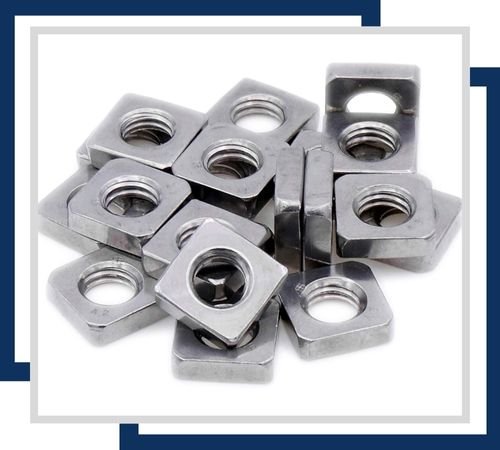

A corrosion-resistant product, Stainless Steel 310 square nuts come in sizes from M6 to M30. Their larger contact surface ensures secure fastening, making them suitable for high-temperature applications in industrial and aerospace settings.
We offer complete certification with our Stainless Steel 310 Nuts. We ensure that our products meet the highest quality standards. In the commercial package, our items consist of commercial invoices, packaging lists, fumigation certificates, heat treatment charts, quality assurance plans, and approved laboratory test reports. Further, for Stainless Steel 310 Nuts, we have varying test certificates as under, namely, MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third-Party Inspection Certificate. We intend to ensure 100% client satisfaction and confidence in our products by providing these detailed certifications.
SS 310 Nuts are commonly found in furnace parts, boiler components, kilns, and thermal processing systems, where heat and oxidation resistance is essential. Their outstanding performance in high-temperature settings makes them a go-to choice in the chemical and petrochemical industries, power generation, aerospace structures, and marine engineering. Typically used alongside bolts and studs, these nuts secure piping systems, pressure vessels, valves, and structural assemblies that face intense heat and corrosion. Their durability and resistance to creep and deformation also make them a reliable option in refining, steel plants, and other industrial applications.
