Aditya Stainless has made a name for itself as a leading manufacturer and supplier of Stainless Steel 310H Flanges in Kolkata, India. They provide top-notch high-temperature flanging solutions to a diverse range of industries. Crafted from stainless steel grade 310H, these flanges are celebrated for their remarkable strength, resistance to oxidation, and performance in high-heat settings. With a higher carbon content than the standard 310, 310H flanges offer enhanced creep resistance and durability. Available in various types like weld neck, slip-on, blind, and threaded flanges, Aditya Stainless ensures precision-engineered products that cater to petrochemical, heat treatment, and furnace applications around the globe.
Stainless Steel 310H Flanges are made up of 24–26% chromium, 19–22% nickel, and a higher carbon content (approximately 0.04–0.10%), which boosts their strength at high temperatures. They showcase a tensile strength of 515 MPa, yield strength of 205 MPa, and an elongation of 40%. The increased carbon content enhances creep resistance and durability at temperatures reaching up to 1100°C. This alloy also excels in resisting corrosion and oxidation, even under cyclic heating and reducing conditions, making it a dependable choice for flanges used in extreme service environments.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.00 | 1.00 | 0.045 | 0.030 | 26.0 | 21.0 | |||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 310H Flanges- Aditya Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Aditya Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

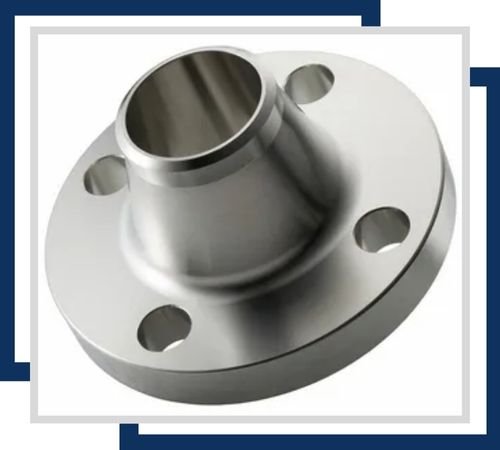

SS 310H long weld neck flanges are robust stainless steel fittings designed for high-pressure applications. Their extended neck provides strength and stability, making them ideal for critical, high-temperature environments.

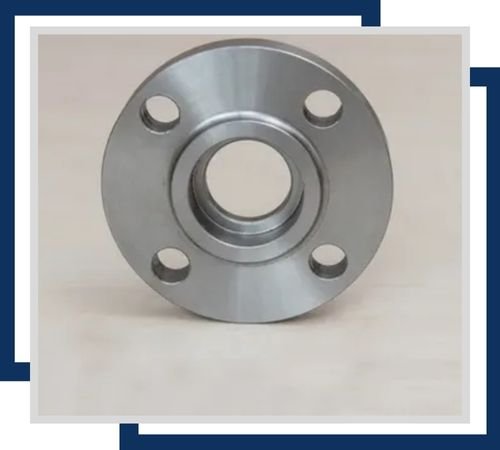

SS 310H lap joint flanges are versatile stainless steel components designed for ease of assembly and disassembly. They offer excellent resistance to high temperatures and corrosion, making them ideal for dynamic applications.

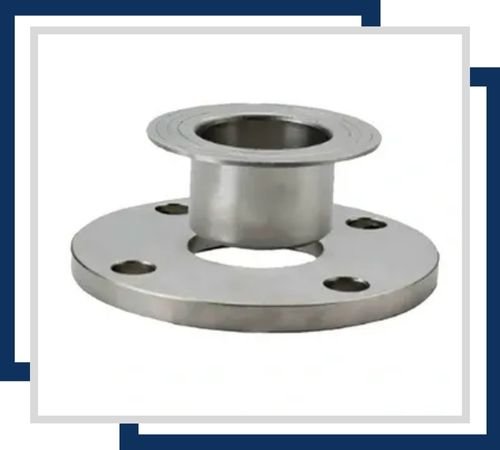

SS 310H reducing flanges facilitate the transition between different pipe sizes in high-temperature systems. Made from stainless steel, they offer exceptional strength and corrosion resistance, ensuring reliable performance under demanding conditions.
Stainless Steel 310H Flanges find their place in high-temperature and high-stress settings, including heat exchangers, boilers, furnace components, and waste incinerators. Their outstanding resistance to oxidation and thermal fatigue makes them perfect for applications in petrochemical plants, power generation, oil and gas processing, and thermal oxidizers. These flanges are also favored in industries like cement, fertilizer, and steel manufacturing, where extreme heat and corrosive conditions are common. Their compatibility with welding and fabrication processes ensures secure connections in piping systems, boosting operational reliability and structural integrity over long periods.
