Aditya Stainless is a well-respected manufacturer and supplier of top-notch Stainless Steel 310H Sheets and Plates based in Kolkata, India. As a prominent player in the stainless steel sector, we focus on delivering SS 310H Sheets and Plates that boast remarkable high-temperature strength, excellent oxidation resistance, and outstanding durability. Our products are crafted using cutting-edge technology and adhere to international standards, catering to a variety of industrial needs. Offered in multiple sizes, thicknesses, and finishes, our SS 310H Sheets and Plates are perfect for use in challenging environments. With a strong dedication to quality and customer satisfaction, Aditya Stainless is your go-to partner in Kolkata for all your stainless steel requirements.
Stainless Steel 310H Sheets and Plates are high-carbon versions of SS 310, specifically engineered for improved creep resistance and high-temperature strength. Their makeup includes 24-26% Chromium, 19-22% Nickel, 0.04-0.10% Carbon, along with small amounts of Manganese, Silicon, and Phosphorus. The mechanical properties showcase a minimum tensile strength of 515 MPa, a yield strength of at least 205 MPa, and an elongation of 40% over 50mm, all while maintaining excellent toughness even at cryogenic temperatures. SS 310H maintains its structural integrity at temperatures reaching up to 1150°C during continuous service, making it ideal for high-temperature applications.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | ASTM, ASME and API |
| Thickness | : | 4.0mm – 100mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | : | SS 310H, (UNS S31009) |
| Grade | Fe | Cr | Ni | Mn | Si | C | P | S |
| SS 310H | – | 26.0-24.0 | 21.0-19.0 | 2.00 | 1.00 | 0.10 | – | 0.030 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | HardnessRockwell B (HR B) max | Hardness Brinell (HB) max |
| 310H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

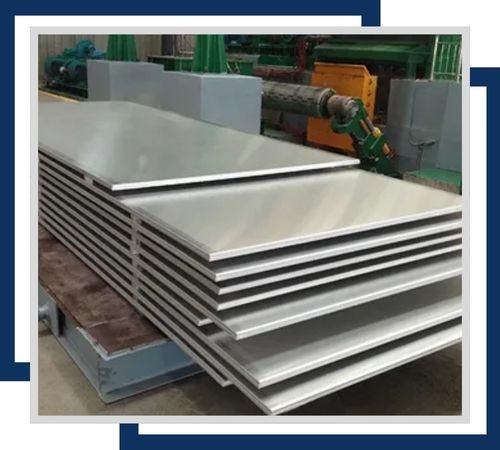

Stainless Steel 310H Hot Rolled Sheets are known for excellent high-temperature corrosion resistance. These are generally available in 2mm to 50mm thickness and widths up to 2000mm and are suitable for structural applications that require strength and durability.

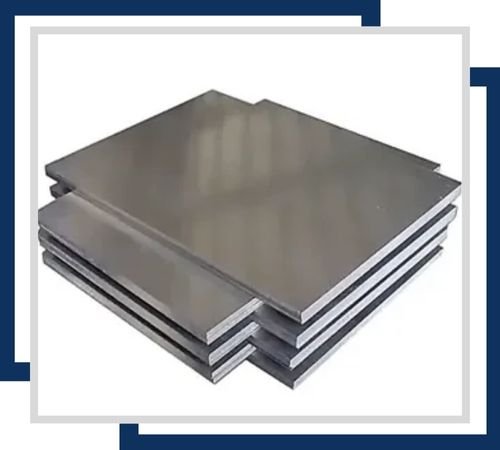

The plates are high in corrosion resistance and the surface finish is even. They come in the thickness range of 0.5mm to 6mm and 1500mm widths. They can be used in applications requiring precise dimensions and higher surface quality.

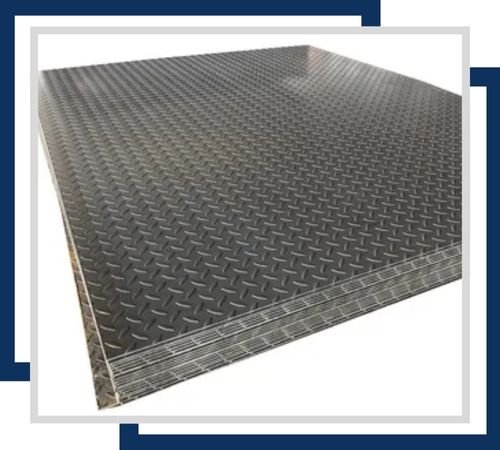

Stainless Steel 310H Chequered Plates have improved slip and high-temperature corrosion resistance. They are available in 3mm to 12mm in thickness and widths up to 1250mm. The product is excellent for flooring and high-traction applications.

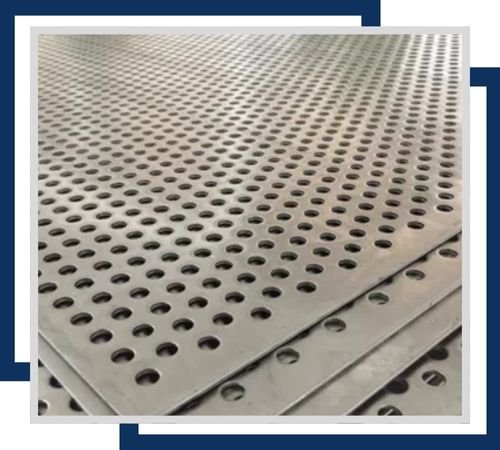

Stainless Steel 310H Perforated Sheets offer high corrosion resistance with customized hole patterns for filtration and ventilation. The sheet sizes are generally available in 0.5mm to 6mm in thickness and up to 2000mm in width. It is used in industrial and architectural applications.

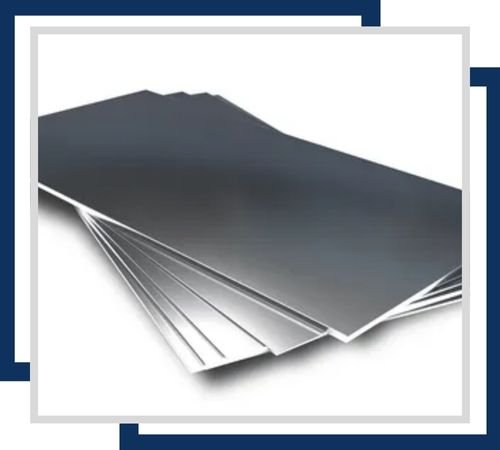

Stainless Steel 310H Shim Sheets are known for their excellent corrosion resistance at high temperatures and are used for spacing and alignment applications. The range of thickness offered is from 0.1mm to 2mm and sizes up to 1000mm x 2000mm, which offers flexibility in application.

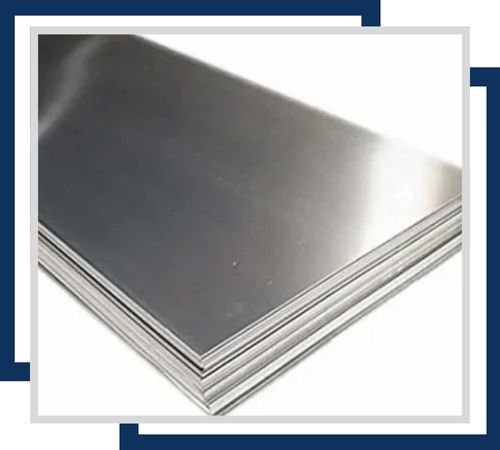

The stainless steel 310H polished plates feature high-temperature corrosion resistance with a mirror-like finish. Available in thicknesses from 1mm to 25mm and widths up to 1500mm, these plates are used in decorative and high-visibility applications where aesthetic quality is important.
Aditya Stainless promises its customers a hassle-free experience. We offer our customers all the documents they require for the purchase of high-quality Stainless Steel 310H Sheets and Plates. We offer the following necessary documents: commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test reports, thus making our products authentic and superior. In addition, our Stainless Steel 310H Sheets and Plates are provided with several test certificates like MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Such certificates highlight the commitment towards customers’ satisfaction as well as continued efforts toward the achievement of excellence in product quality.
Stainless Steel 310H Sheets and Plates find extensive use in industries that demand exceptional high-temperature performance and corrosion resistance. They are commonly employed in heat treatment equipment, furnaces, kilns, and radiant tubes within thermal processing facilities. Additionally, these sheets and plates are utilized in the petrochemical and power generation sectors for boilers, heat exchangers, and flue gas systems. In Kolkata and throughout India, SS 310H Sheets and Plates are favored for structural components that face high heat and corrosive conditions. Their remarkable oxidation resistance and mechanical strength make them a reliable choice for demanding applications.
