Aditya Stainless stands out as a top-notch manufacturer and supplier of Stainless Steel 310S Nuts, catering to both Indian and global markets with high-quality fastening solutions. SS 310S is an austenitic stainless steel known for its remarkable resistance to high temperatures and oxidation, making it perfect for industrial applications that face heat and corrosion. Our 310S nuts are meticulously crafted and come in various types, including hex nuts, lock nuts, flange nuts, and cap nuts, all adhering to ASTM, DIN, and ISO standards. Produced in Kolkata, these nuts are highly regarded for use in power plants, refineries, and furnace assemblies.
Stainless Steel 310S Nuts generally consist of 24–26% chromium, 19–22% nickel, and a maximum carbon content of 0.08%, along with trace amounts of manganese, silicon, and phosphorus. The low carbon content boosts weldability and minimizes the risk of carbide precipitation. These nuts showcase a tensile strength of about 515 MPa, a yield strength of roughly 205 MPa, and an elongation of around 40%. Their unique composition guarantees outstanding resistance to oxidation, scaling, and high-temperature corrosion, making them perfect for extended use in elevated temperature environments.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of Stainless Steel Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard SS Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 SS Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated Stainless Steel Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | Stainless steel : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
SS 310S |
0.08 max |
2.0 max |
1.00 max |
0.045 max |
0.030 max |
24.00 – 26.00 |
0.75 max |
19.00 – 21.00 |
53.095 min |
Contact us to get a quick quote for your requirement.

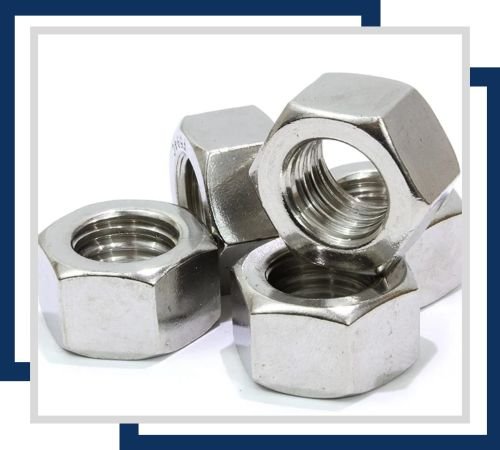

Corrosion-resistant product ideal for high-temperature environments. Stainless Steel 310S Nuts are available in sizes from M6 to M36, suitable for furnace parts, heat exchangers, and chemical processing equipment where durability and heat resistance are crucial.

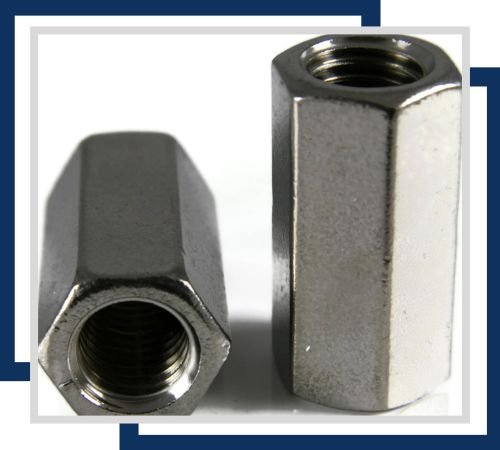

Stainless Steel 310S Coupling Nuts are designed for joining threaded rods in extreme conditions. Sizes range from M6 to M36, making them ideal for high-heat and corrosive applications such as in chemical processing and power generation.

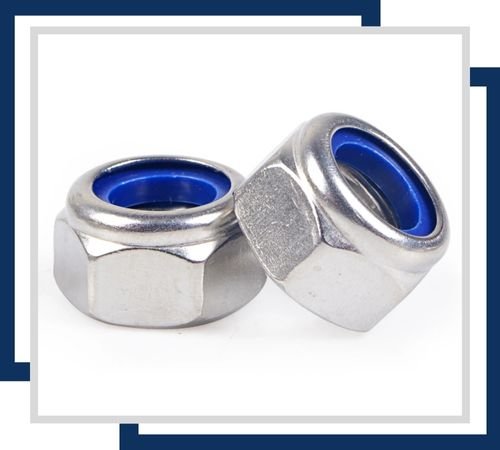

Featuring a nylon insert for secure fastening, Stainless Steel 310S Nylon Insert Nuts are available in sizes from M6 to M24. They provide stability and resist high temperatures, making them suitable for use in industrial machinery and heat exchangers.

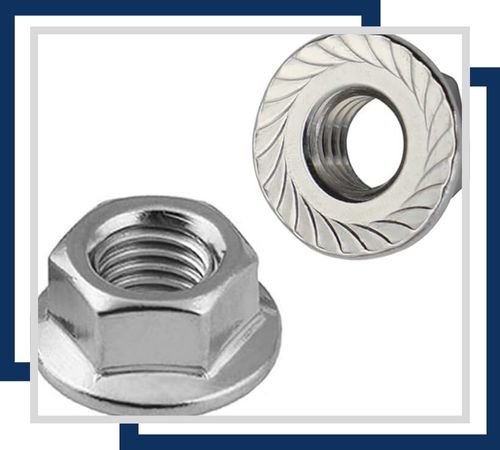

Stainless Steel 310S Flange Hex Nuts offer enhanced load distribution with integrated flanges. Available in sizes from M6 to M24, they are used in high-temperature applications such as furnace construction and chemical processing where strong support is needed.

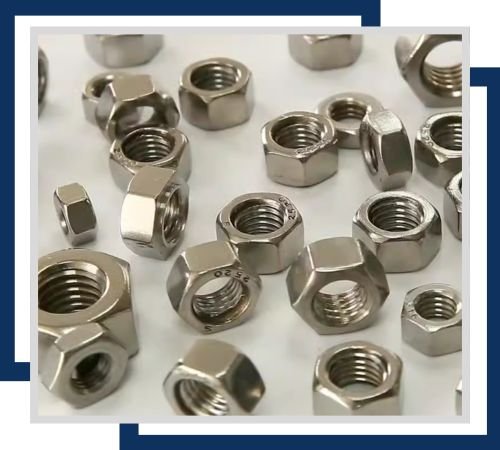

Engineered for high-stress and high-temperature environments, Stainless Steel 310S Heavy Hex Nuts are available in sizes from M6 to M36. They are ideal for use in applications like heat exchangers and industrial machinery, offering exceptional strength and durability.

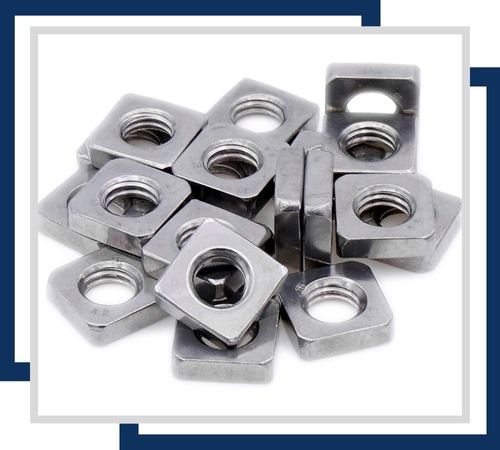

Stainless Steel 310S Square Nuts provide a large surface area for effective torque application. Sizes range from M6 to M24, making them suitable for high-temperature applications where secure fastening and heat resistance are essential.
We ensure careful packing and shipping of our Stainless Steel 310S Nuts. The nuts are placed in a wooden box with strips for secure locking, and are packaged in waterproof material. For easy transportation, they are designed for easy handling. Essential documents such as a commercial invoice, certificate of origin, fumigation certificate, heat treatment chart, quality assurance plan, and material testing certificates are included with the nuts. Ensuring the products reach our customers in perfect condition and on time is our top priority to guarantee their complete satisfaction.
Stainless Steel 310S Nuts find extensive application in industries that require exceptional heat and corrosion resistance, such as thermal processing, chemical manufacturing, furnace engineering, and oil and gas exploration. They are especially effective for fastening components in boilers, heat exchangers, kilns, and incinerators. These nuts retain their strength and integrity even under thermal cycling and harsh conditions. Additionally, SS 310S nuts are employed in aerospace, marine, and nuclear industries due to their performance in extreme environments. Their durability, strength, and resistance to scaling make them a dependable choice for high-performance applications.
