Aditya Stainless is a reputable manufacturer and supplier of Stainless Steel 316/316L Sheets and Plates, proudly based in Kolkata, India. Our SS 316/316L sheets and plates are made from top-notch austenitic stainless steel that includes molybdenum, giving them exceptional resistance to pitting, crevice corrosion, and general wear in tough environments. The Grade 316L, known for its low carbon content, is especially ideal for welding, reducing the chances of carbide precipitation. We offer sheets and plates in a variety of thicknesses, finishes, and sizes to cater to industries like marine, pharmaceutical, food processing, and chemical. Each product adheres to global quality standards and performance expectations.
Stainless Steel 316/316L Sheets and Plates are composed of 16–18% Chromium, 10–14% Nickel, and 2–3% Molybdenum, with Grade 316L featuring a carbon content of less than 0.03%. This unique blend provides outstanding corrosion resistance, particularly against chlorides and acidic conditions. The mechanical characteristics include a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. The low carbon content in 316L helps prevent weld decay, enhancing weldability without the need for post-weld annealing. These attributes make 316/316L sheets and plates a dependable choice for demanding and corrosive applications that require long-lasting performance.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
|
316 |
Min |
– |
– |
– |
0 |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
|
316L |
Min |
– |
– |
– |
– |
– |
16.0 |
2.00 |
10.0 |
– |
|
Max |
0.03 |
2.0 |
0.75 |
0.045 |
0.03 |
18.0 |
3.00 |
14.0 |
0.10 |
|
ade |
Tensile Str
(MPa) min |
Yield Str
0.2% Proof
(MPa) min |
Elong
(% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
316 |
515 |
205 |
40 |
95 |
217 |
|
316L |
485 |
170 |
40 |
95 |
217 |
Contact us to get a quick quote for your requirement.

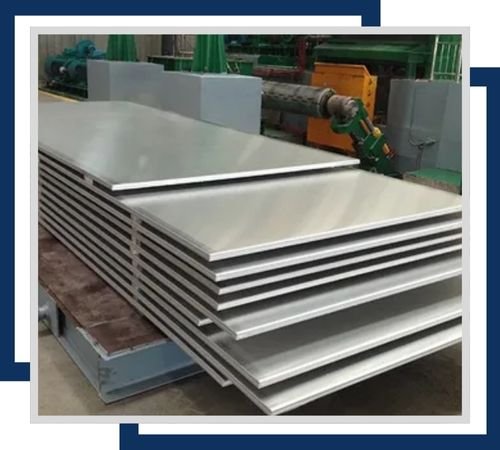

Stainless Steel 316 Hot Rolled Plates are great plates for numerous applications due to excellent corrosion resistance. The hot rolled plates available vary in size, from 4mm up to 150mm in thickness, and from 2000mm in width.

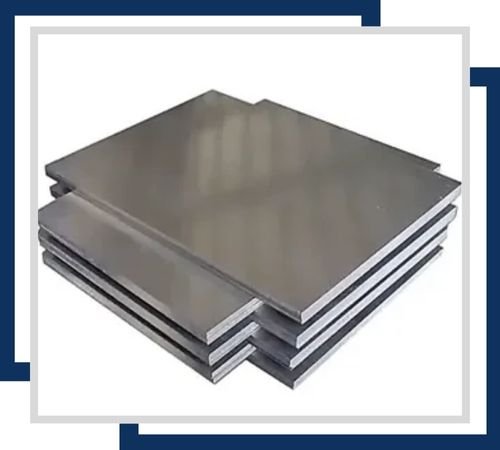

Stainless Steel 316L Cold Rolled Sheets are famous for their high corrosion resistance. The sheets come in thickness from 0.3mm to 6mm and width up to 2000mm. These sheets offer a smooth finish and are used in applications where precision and aesthetic appeal are required.

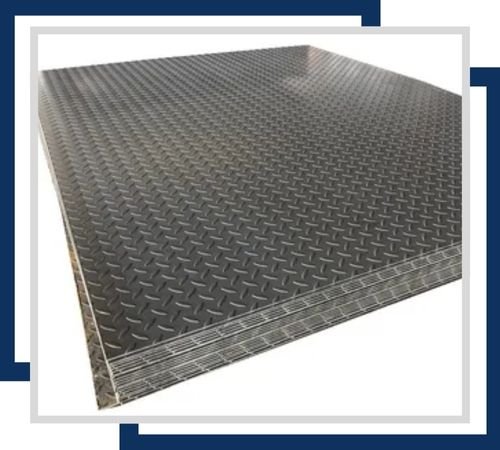

The chequered stainless steel 316L sheets have a raised diamond pattern that gives it a better grip and less slipping. The thicknesses of the sheets are from 3mm to 8mm, and sizes are up to 1500mm x 3000mm for flooring and walkways.

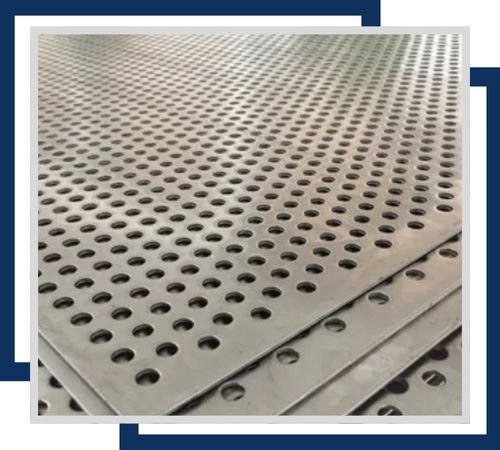

Stainless Steel 316 Perforated Plates provide superior corrosion resistance. The products are available in different thicknesses of 0.4mm to 12mm with a range of hole sizes and patterns, suitable for several industrial applications in filtration and ventilation.

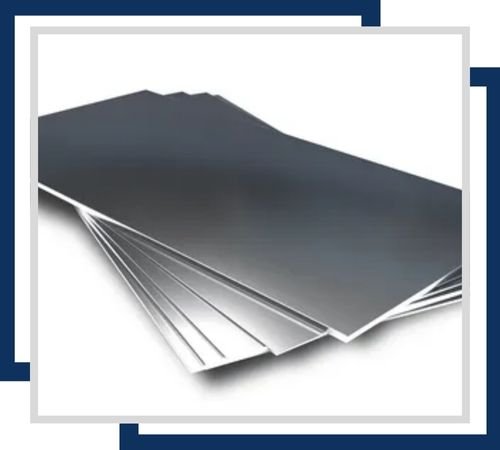

Stainless steel 316L shim sheets-very thin material, very sharp, corrosion resisting, with many applications for spacers and other alignment needs in machinery and structurals from 0.05mm up to 3mm with cut options by specific size or width.

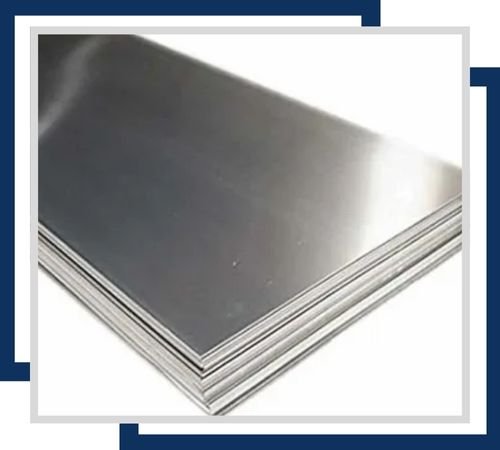

Stainless Steel 316L Polished Plates have high corrosion resistance along with a bright mirror finish. The plates come in a variety of thickness, from 0.5mm to 50mm, and sizes up to 2000mm x 6000mm for decorative purposes, architectural applications, and other heavy industrial uses.
Aditya Stainless focuses on an hassle-free experience for customers while providing rich documentation for our stainless steel sheets/plates of high-quality type 316 and 316L. We guarantee the authenticity and superior quality of our products with guaranteed documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. Our Stainless Steel 316/316L Sheets and Plates also come with various test certificates which include MTC in accordance with EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Our company promises customer satisfaction and keeps on looking forward to the product excellence.
Stainless Steel 316/316L Sheets and Plates are widely utilized in industries which require superior resistance to corrosion, such as in the marine, chemical, and food processing industries. Their high pitting and crevice corrosion resistances make it ideal for conditions involving chlorides and acidic environment. The list of applications include chemical tanks, pharmaceutical equipment, heat exchangers, pressure vessels, and piping systems.
