Aditya Stainless stands out as a top manufacturer and supplier of Stainless Steel 316Ti Fasteners, proudly based in Kolkata, India. These fasteners are expertly made from titanium-stabilized austenitic stainless steel, giving them remarkable resistance to intergranular corrosion and high temperatures. Perfect for tough industrial settings, SS 316Ti fasteners come in a variety of types, including bolts, nuts, screws, studs, washers, and anchors. Built to meet international standards like ASTM A193, ASTM A194, and DIN/ISO, these fasteners promise outstanding durability, precise dimensions, and reliable long-term performance, making them ideal for critical tasks in chemical, petrochemical, and marine industries.
Stainless Steel 316Ti Fasteners are composed of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with titanium added in amounts at least five times the carbon content to stabilize the alloy. The carbon content is kept to a maximum of 0.08%. These fasteners boast a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%, ensuring excellent mechanical stability. The addition of titanium helps prevent sensitization during welding and extended exposure to high temperatures, making them perfect for corrosive and thermal environments where both strength and corrosion resistance are crucial.
Standard | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
Bolt / Screw Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
Machine Screws Size | M1.6 – M12 |
Self Tapping Screw Size | No.2 – No. 14 |
Length | 3 mm to 200 mm |
Studs, Bolts, Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
Certification | Dual Certified As per ASTM & ASME Codes |
Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
Test Certificate of Bolting | as per EN 10204 / 3.1 Manufacturer Test Certificate |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Corrosion-resistant and highly durable, Stainless Steel 316Ti Bolts are ideal for high-temperature and marine applications. Available in sizes ranging from M6 to M30, with lengths up to 300 mm. They offer excellent resistance to pitting and crevice corrosion.

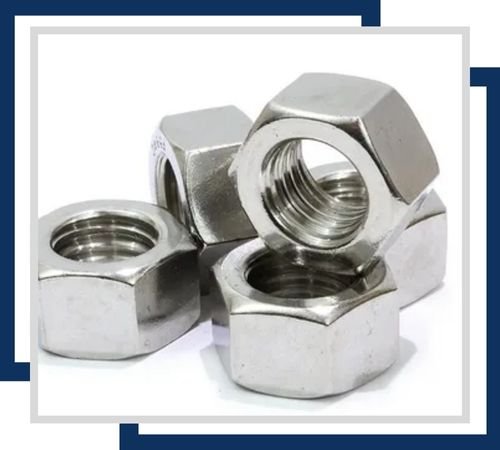

SS 316Ti Nuts are designed for exceptional corrosion resistance, especially in chloride environments. Typically available in sizes from M6 to M30, with various thread pitches. They complement 316Ti bolts and are used in high-temperature and aggressive environments.

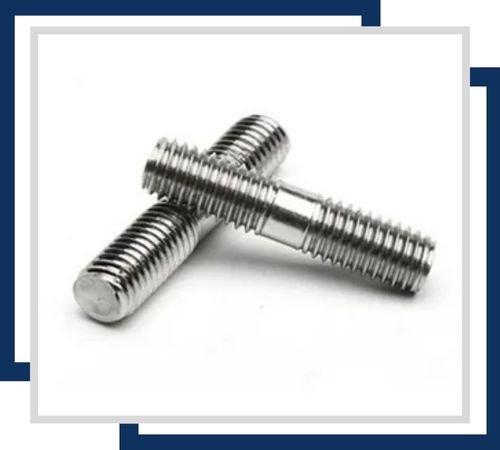

Offering superior resistance to corrosion and high strength, these Stud Bolts come in sizes from M6 to M30, with lengths ranging from 50 mm to 300 mm. Ideal for use in severe service conditions where high tensile strength is needed.
Known for their corrosion resistance, these screws are used in marine and industrial applications. Available in sizes from M2 to M20, with lengths up to 200 mm. They provide reliable performance in environments exposed to chemicals and saltwater.
Corrosion-resistant and high-strength, these rods are available in diameters from M6 to M30 and lengths up to 3 meters. They are used in construction and industrial applications where resistance to harsh environments is critical.

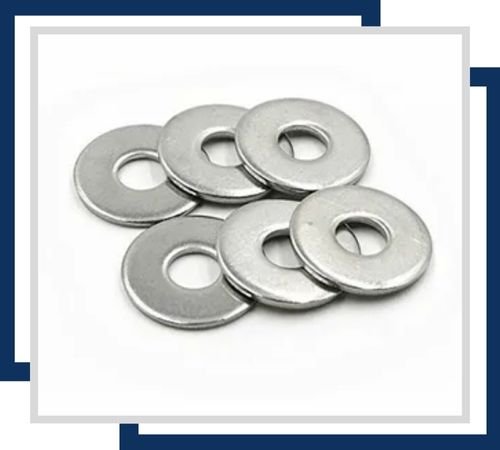

Offering excellent resistance to corrosion, these washers are available in sizes from M6 to M30. They ensure even load distribution and prevent damage to surfaces. It is ideal for use with 316Ti bolts and nuts in aggressive environments.
Our expertise in packaging Stainless Steel 316Ti fasteners carefully in Kolkataand India. While considering wooden boxes, pallets, and eco-friendly packing materials, we are very meticulous in using high-quality standards industrial packaging material. The procedure is carried out in a dust-free environment to maintain cleanliness from dirt, dust, or any other foreign materials that compromise product quality. These fasteners are prepared for shipping once careful attention has been paid to all details. They reach customers in excellent condition, regardless of distance.
Stainless Steel 316Ti Fasteners find extensive use in industries that demand high corrosion resistance and thermal stability, such as chemical processing, marine engineering, oil and gas, power generation, and pharmaceuticals. They are particularly well-suited for fastening components in pressure vessels, heat exchangers, piping systems, and boilers that operate under extreme temperatures and harsh conditions. In offshore settings, these fasteners offer long-lasting protection against chloride-induced stress corrosion cracking. Their excellent weldability, structural integrity, and durability make them a go-to choice for many applications.
