Aditya Stainless stands out as a leading manufacturer and supplier of Stainless Steel 316Ti Tubing in Kolkata, India. They provide top-notch tubing solutions specifically designed for high-temperature and highly corrosive environments. SS 316Ti is a titanium-stabilized variant of 316 stainless steel, known for its impressive resistance to intergranular corrosion and exceptional strength at elevated temperatures. These tubes find their place in various industries, including chemical processing, pharmaceuticals, heat exchangers, marine, and food sectors, where durability, hygiene, and thermal stability are essential. Manufactured according to ASTM A213, A269, and A249 standards, Stainless Steel 316Ti tubing comes in both seamless and welded forms, boasting precise dimensions and finishes.
Stainless Steel 316Ti Tubing is composed of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and titanium for stabilization, typically five times the carbon content. This unique blend enhances its resistance to pitting, crevice corrosion, and high-temperature oxidation. The tubing showcases a tensile strength ranging from 515 to 730 MPa, a yield strength of 205 MPa, and an elongation of 30–40%. The presence of titanium helps prevent carbide precipitation during welding, ensuring corrosion resistance in heat-affected zones. SS 316Ti tubing is known for its excellent mechanical stability, weldability, and long-lasting reliability in challenging and thermally demanding applications.
Tube Range : 6.35 mm OD To 101.6 mm OD Guage: 25 SWG – 10 SWG
Outer Diameter : 3.00 mm – 219.10 mm
Wall Thickness : 0.40 mm – 12.70 mm
Schedules : 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length : Upto 30 meters, Custom Cut Lengths
Specifications : ASTM A269 / ASTM SA269
Types : Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes
SS | 316TI |
Ni | 10 – 14 |
N | 0.10 max |
Cr | 16 – 18 |
C | 0.08 max |
Si | 0.75 max |
Mn | 2 max |
P | 0.045 max |
S | 0.030 max |
Mo | 2.00 – 3.00 |
Grade | 316TI |
Tensile Strength (MPa) min | 515 |
Yield Strength 0.2% Proof (MPa) min | 205 |
Elongation (% in 50mm) min | 35 |
Hardness | |
Rockwell B (HR B) max | 75 |
Brinell (HB) max | 205 |
Contact us to get a quick quote for your requirement.
This steel 316Ti tubing from Aditya Stainless is thoroughly inspected for pitting and intergranular corrosion resistance, tensile strength, and hardness, apart from hydrostatic pressure testing for premium quality, and is accredited and approved to international specifications like ASTM, ASME, and ISO against each material test report.
Stainless Steel 316Ti Seamless Tubing is known for its superior corrosion resistance, especially in high-temperature environments. Typically available in sizes ranging from 1/8” to 12” OD, it offers excellent mechanical properties and smooth surface finishes. Ideal for applications requiring high precision and reliability.
Stainless Steel 316Ti Welded Tubing combines excellent corrosion resistance with durability. Available in sizes from 1/8” to 24” OD, this tubing is cost-effective and versatile for various applications. It is particularly suitable for industries where high resistance to oxidizing acids is essential.

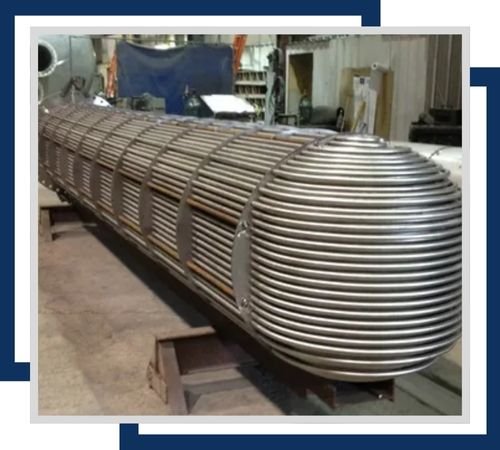

Stainless Steel 316Ti Heat Exchanger Tubes are designed for optimal thermal conductivity and corrosion resistance. These tubes come in sizes ranging from 1/4” to 2” OD, making them perfect for heat exchangers in chemical processing and power generation industries. They ensure efficient heat transfer and long service life.

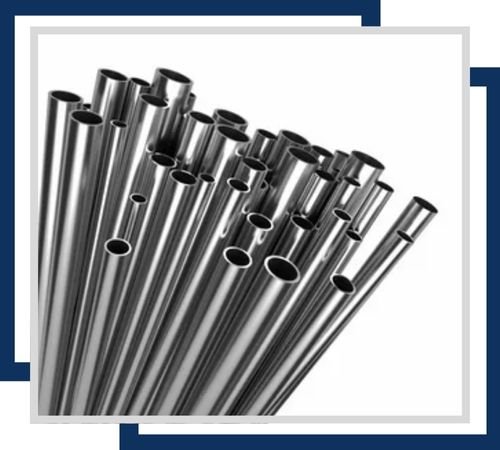

Stainless Steel 316Ti Instrumentation Tubing offers superior corrosion resistance and precision. Available in sizes from 1/16” to 1” OD, it is ideal for high-pressure and high-temperature applications in instrumentation and control systems. Ensures reliable performance and accuracy in critical applications.

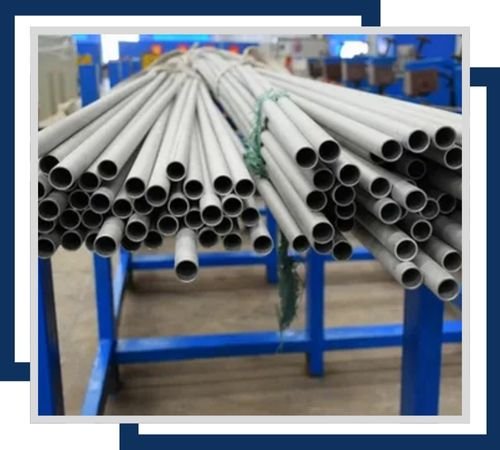

Stainless Steel 316Ti Boiler Tubes are engineered for high temperature and pressure conditions. Sizes range from 1/2” to 5” OD, providing excellent resistance to oxidation and corrosion. These tubes are essential for maintaining efficiency and longevity in boiler systems

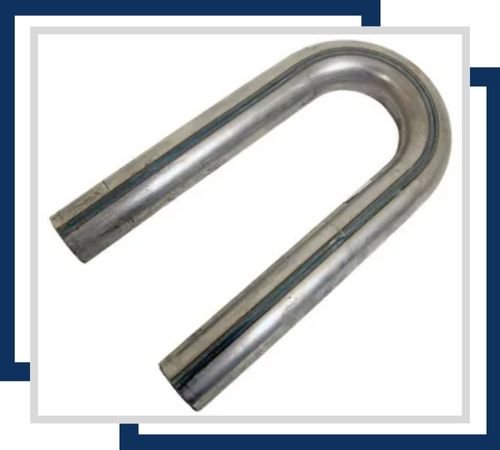

Stainless Steel 316Ti U-Tubes are designed for heat exchangers and boiler systems where space-saving is crucial. Available in sizes from 1/4” to 1” OD, they offer exceptional corrosion resistance and flexibility in design. Ideal for applications requiring compact and efficient thermal transfer solutions

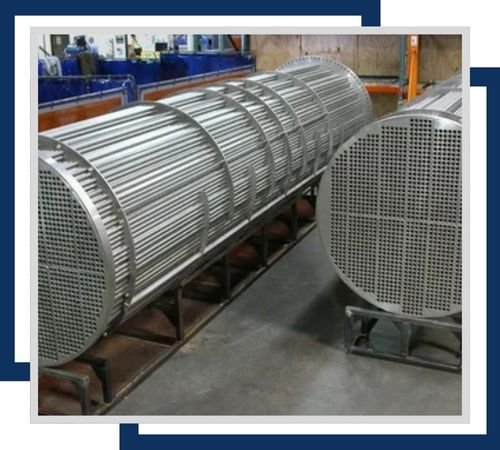

Stainless Steel 316Ti Condenser Tubes provide excellent corrosion resistance and thermal conductivity. Sizes range from 1/4” to 2” OD, making them suitable for condensers in power plants and HVAC systems. Ensures efficient condensation and long-term performance

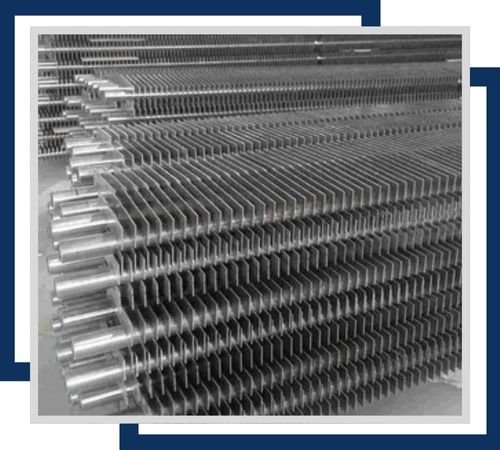

Stainless Steel 316Ti Fin Tubes enhance heat transfer efficiency while maintaining high corrosion resistance. Available in sizes from 1/4” to 1-1/2” OD, these tubes are used in heat exchangers, condensers, and evaporators. The finned design maximizes surface area for optimal thermal performance.
Stainless Steel 316Ti Tubing is widely utilized in chemical and petrochemical plants, power generation facilities, food and beverage processing, and pharmaceutical systems, thanks to its remarkable resistance to corrosive chemicals and high temperatures. It’s perfect for applications like heat exchangers, superheaters, instrumentation lines, fluid transfer, and condensers. In marine and offshore settings, it effectively resists saltwater corrosion, while in hygienic systems, it upholds purity and cleanliness. The titanium stabilization guarantees dimensional stability and longevity, making it a go-to choice for various demanding applications.
