Aditya Stainless stands out as a leading manufacturer and supplier of Stainless Steel 317 Bars, proudly based in Kolkata, India. SS 317 is a high-alloy austenitic stainless steel that’s rich in molybdenum, giving it remarkable resistance to chemical attacks and pitting, especially in chloride-rich environments. These bars are celebrated for their impressive strength, excellent formability, and superior corrosion resistance compared to more common stainless steels like 304 or 316. Offered in various shapes—round, hex, square, and flat—our SS 317 bars meet global standards such as ASTM A276, A479, and ASME SA276, making them perfect for tough industrial applications that face aggressive chemicals and high temperatures.
Stainless Steel 317 Bars are made up of chromium (18–20%), nickel (11–15%), molybdenum (3–4%), with minimal carbon content (≤0.08%), along with trace amounts of manganese and silicon. These bars boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of about 35%. The added molybdenum enhances their resistance to pitting and crevice corrosion, ensuring they remain durable even in challenging environments. SS 317 not only offers excellent mechanical properties but also retains its structural integrity under high temperatures and acidic conditions.
| Specifications | ASTM A 276 / SA 276 |
|---|---|
| Dimensions | ASTM, ASME |
| Range | 3.17 MM TO 350 MM DIA |
| Diameter | 25mm to 152mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N |
| SS 317 | 0.08 max. | 2.00 max. | 1.00 max. | 0.045 max. | 0.03 max. | 18.0 – 20.0 | 11.0 – 14.0 | 3.0 – 4.0 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | ||
| Rockwell B (HR B) max | Brinell (HB) max | |||||
| 317 | 620 MPa | 275 MPa | 45% | 85 | 193 | – |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel 317 panels are rigorously tested for quality, durability and performance. Products are subjected to various tests, including mechanical, chemical and corrosion resistance studies. Certified to industry standards, each batch is accompanied by appropriate certifications to ensure compliance and customer satisfaction.

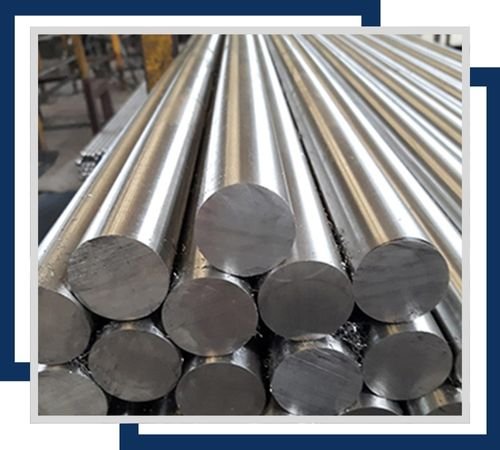

Corrosion-resistant Stainless Steel 317 Round Bars come in various diameters, typically from 6mm to 300mm. They are ideal for applications requiring high resistance to chloride corrosion, such as marine and chemical environments.

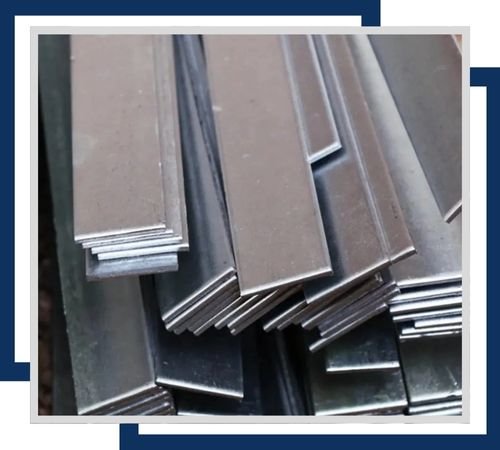

Stainless Steel 317 Flat Bars are available in widths ranging from 10mm to 300mm and thicknesses from 3mm to 50mm. These bars excel in resisting corrosion and are used in structural applications exposed to harsh chemicals.

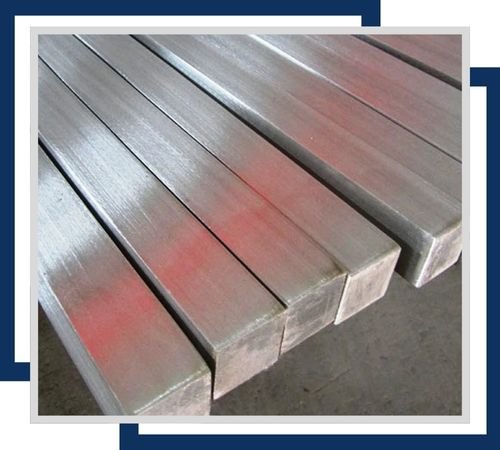

Stainless Steel 317 Square Bars, offered in sizes from 10mm to 100mm, provide excellent resistance to corrosion in aggressive environments. They are used in various structural and manufacturing applications requiring robust material properties.

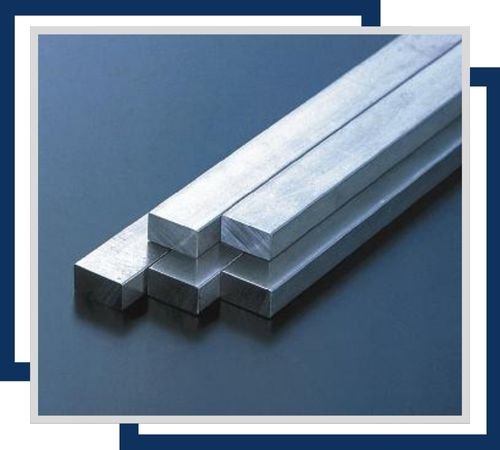

Stainless Steel 317 Rectangular Bars come in dimensions like 20mm x 10mm to 150mm x 50mm. They are preferred for applications needing high strength and resistance to corrosive substances, such as heat exchangers.

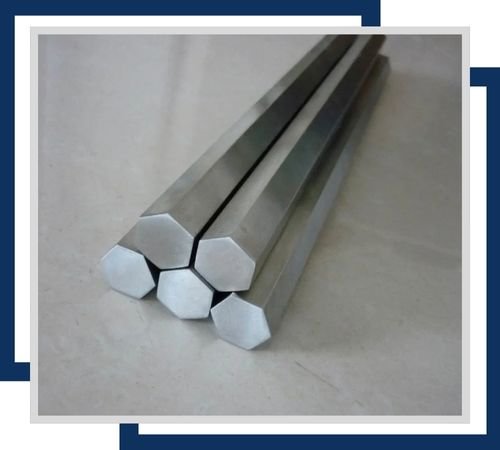

Corrosion-resistant Stainless Steel 317 Hexagonal Bars, available in sizes from 10mm to 100mm across flats, offer excellent performance in corrosive environments. They are used in industries where both strength and corrosion resistance are critical.

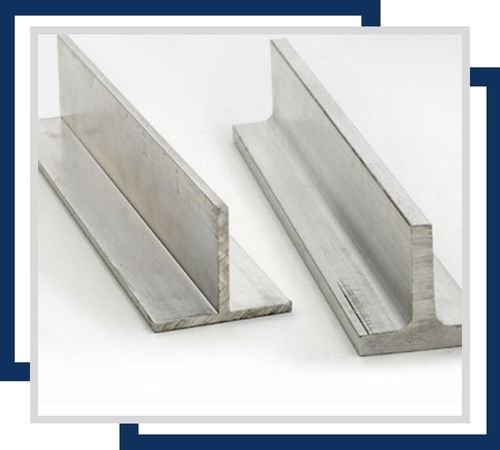

Stainless Steel 317 T-Bars are typically available in sizes like 10mm x 10mm to 100mm x 100mm. These bars provide high resistance to corrosion and are used in structural supports and frameworks exposed to aggressive conditions.
Stainless Steel 317 Bars find extensive use in environments that demand resistance to sulfuric, hydrochloric, and phosphoric acids, as well as in chloride-laden settings. You’ll often see them in chemical and petrochemical processing plants, paper and pulp mills, marine applications, and food and beverage processing equipment. These bars are perfect for heat exchangers, evaporators, pharmaceutical tanks, and nuclear fuel reprocessing systems. Thanks to their outstanding corrosion resistance and durability, they are well-suited for fabrication, welding, and machining, even in the toughest operating conditions. SS 317 bars deliver long-lasting performance, making them a reliable choice for various applications.
