Aditya Stainless, a well-respected manufacturer and supplier located in Kolkata, India, focuses on crafting top-quality Stainless Steel 317 Pipe Fittings known for their exceptional corrosion resistance and mechanical strength. SS 317 is an austenitic stainless steel alloy enriched with molybdenum, specifically designed to withstand harsh acidic and chloride-rich environments. These pipe fittings are produced in line with international standards like ASTM A403, ASME B16.9, and MSS-SP-43, ensuring they are both durable and precise. Available in a variety of types—such as elbows, tees, reducers, crosses, and caps—these fittings are perfect for industries that need reliable flow control and corrosion-resistant piping systems.
Stainless Steel 317 Pipe Fittings are made up of roughly 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, along with carefully controlled levels of carbon, manganese, and silicon. These components significantly boost their resistance to sulfuric acids, chloride solutions, and pitting corrosion. The fittings boast a minimum tensile strength of 515 MPa, a yield strength of 205 MPa, and an elongation of 35%, merging outstanding mechanical performance with corrosion resistance. SS 317 pipe fittings also maintain their structural integrity even under high temperatures and pressures, making them a top choice for critical industrial applications.
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size | ½”NB to 48″NB in |
| Schedule | Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 317 | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
We insists on high-quality standards of Stainless Steel 317 Pipe Fittings by proper testing and certifications. Each product is inspected in detail for dimensional accuracy, corrosion resistance, and pressure tests. With internationally accepted standards like ASTM and ASME, our fittings guarantee comfortableness, performance, and adherence to the highest standard in the industry.

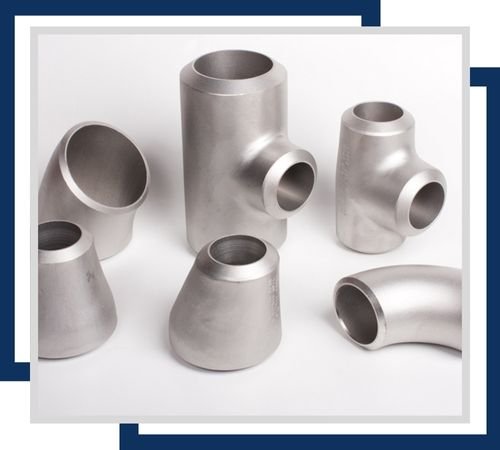

Stainless Steel 317 pipe fittings are corrosion-resistant components designed for harsh environments. They provide durable, reliable connections in chemical processing, marine applications, and high-temperature systems, ensuring long-lasting performance.

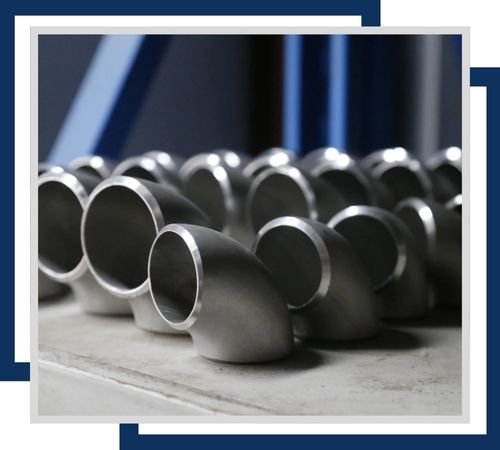

SS 317 butt weld pipe fittings are corrosion-resistant components used to join pipes with seamless, strong connections. They ensure durability and reliability in chemical processing and marine applications, handling aggressive conditions.

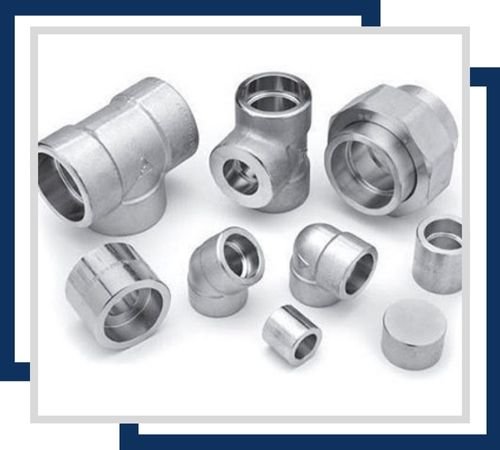

SS 317 socket weld pipe fittings are corrosion-resistant components providing secure, leak-proof connections. They are designed for high-pressure applications, ensuring durability and reliability in chemical, marine, and demanding environments.

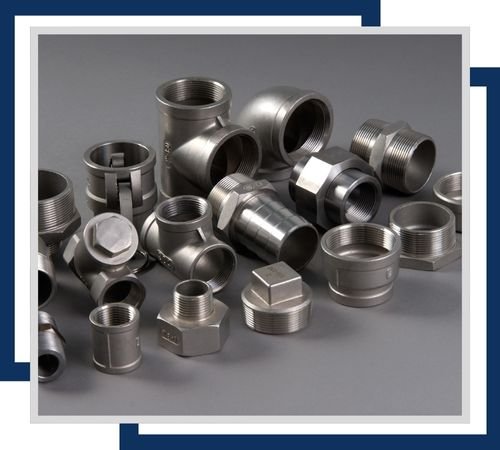

Stainless Steel 317 seamless fittings are high-strength, corrosion-resistant components crafted without joints. They ensure robust, leak-proof connections in harsh environments, ideal for chemical processing and marine applications.

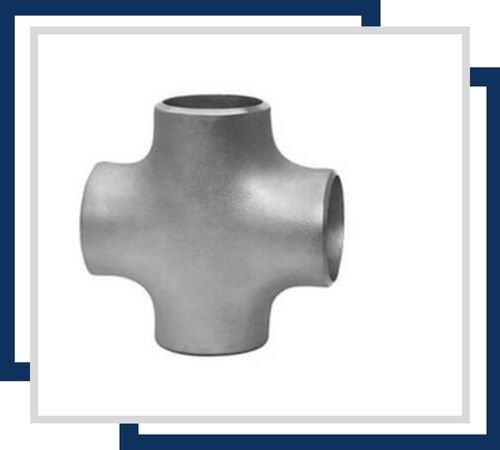

SS 317 cross pipe fittings are corrosion-resistant components that connect four pipes at a central junction. They provide strong, reliable connections in high-pressure and harsh environments, suitable for demanding applications.

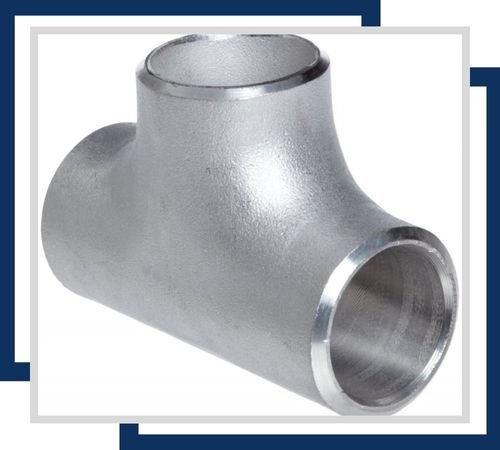

Stainless Steel 317 tee fittings are corrosion-resistant components designed to connect three pipes at a right angle. They offer durable, reliable connections in harsh environments, ideal for chemical and marine applications.
Stainless Steel 317 Pipe Fittings find extensive use in chemical processing, pharmaceutical manufacturing, marine applications, oil and gas refineries, and the pulp and paper industry, thanks to their remarkable resistance to aggressive chemicals and chloride-induced corrosion. They are perfect for piping systems that handle acids, alkalis, and chlorinated compounds, and are also utilized in desalination plants, power generation facilities, and wastewater treatment systems. These fittings ensure leak-proof and corrosion-resistant flow control in challenging conditions. Their strength, weldability, and reliability make them indispensable in demanding environments.
