Aditya Stainless has built a solid reputation as a reliable manufacturer and supplier of Stainless Steel 317 Pipes in Kolkata, India. They specialize in delivering high-performance piping solutions designed to withstand aggressive and corrosive environments. Stainless Steel 317 is a molybdenum-bearing austenitic stainless steel that offers better corrosion resistance than SS 316, especially in acidic and chloride-rich settings. These pipes come in both seamless and welded forms, adhering to global standards like ASTM A312, A358, and ASME B36.19. Thanks to their exceptional strength, weldability, and corrosion resistance, SS 317 pipes find extensive use in chemical processing, power plants, pulp and paper industries, and marine applications.
Stainless Steel 317 Pipes are composed of about 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, along with a low carbon content that enhances their corrosion resistance and strength. These pipes boast a minimum tensile strength of 515 MPa, a yield strength of 205 MPa, and an elongation of 35%, all while providing excellent resistance to pitting and crevice corrosion. The high molybdenum content makes SS 317 particularly well-suited for environments with chlorides and other harsh chemicals. Its superior mechanical properties ensure long-lasting durability and reliability, even in high-pressure and high-temperature systems.
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
317 | min. | 8.0 | – | – | – | – | – | 18.0 | – | – |
max. | 10.5 | 2.0 | 0.045 | 0.08 | 0.030 | 0.75 | 20.0 | |||
Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
317 | 515 | 40 | 205 | 92 | 201 |
Contact us to get a quick quote for your requirement.
We ensures high quality stainless steel 317 pipe through extensive testing and certification. Our pipe involves chemical composition analysis, mechanical testing and dimensional inspection. We offer comprehensive certificates of compliance, proving that international standards are met. This provides exceptional strength, corrosion and reliability, which promises all the requirements of the industry.
Stainless 317 Square Pipes are square-shaped pipes made from 317 stainless steel, offering superior corrosion resistance, durability, and strength, making them ideal for structural and industrial applications in harsh environments.

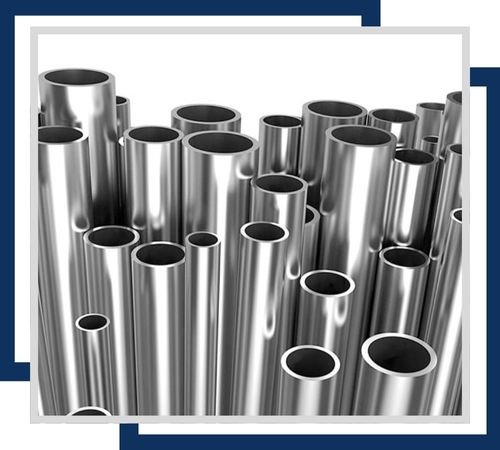

SS 317 Seamless Pipes are made from 317 stainless steel without welded seams, providing excellent corrosion resistance, strength, and durability, suitable for industrial applications and environments with high chemical exposure.

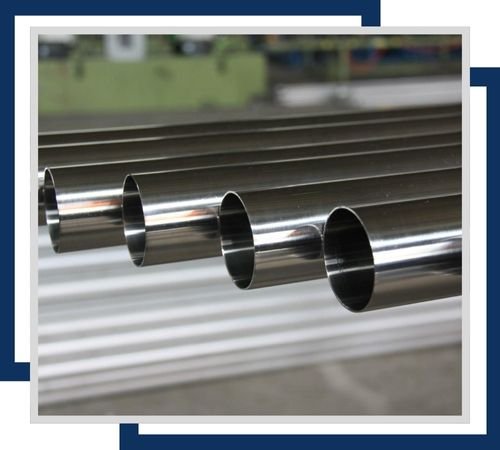

Stainless Steel 317 ERW Pipes are electric resistance welded pipes made from 317 stainless steel, offering high corrosion resistance, strength, and durability, ideal for industrial applications and environments exposed to harsh conditions.

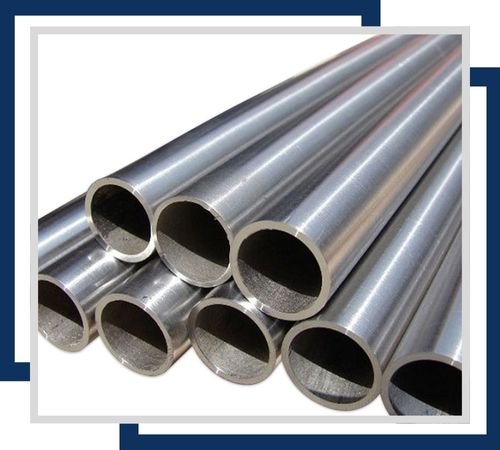

SS 317 LSAW pipe is longitudinally submerged arc welded pipes made of 317 stainless steel, which provide excellent corrosion resistance, high strength and durability for high pressure applications

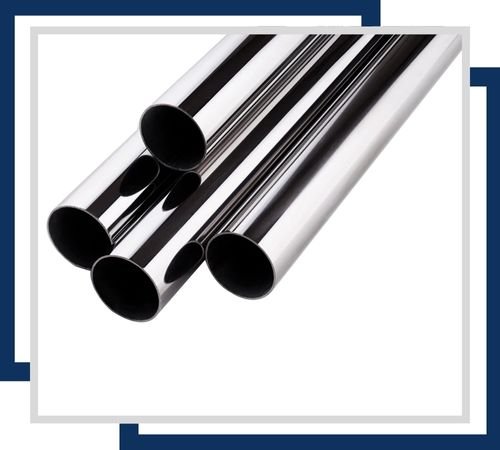

Stainless Steel 317 Round Pipes are cylindrical pipes made from 317 stainless steel, offering excellent corrosion resistance, durability, and strength, ideal for use in industrial applications and harsh environments.

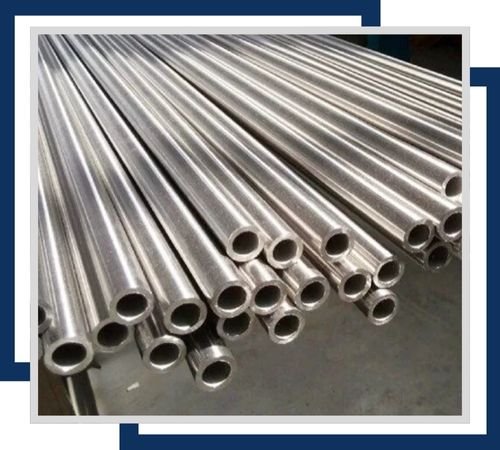

Stainless Steel 317 Welded Pipes are pipes made from 317 stainless steel and joined by welding, providing excellent corrosion resistance, strength, and durability for various industrial and high-heat applications.
Stainless Steel 317 Pipes are widely utilized in industries where corrosion resistance and strength are critical. They are commonly found in chemical processing, petrochemical plants, desalination facilities, marine environments, and the pulp and paper sector. These pipes excel at handling acids, chlorides, and aggressive chemical solutions. You’ll find them in heat exchangers, evaporators, seawater handling systems, and refinery process lines. Thanks to their outstanding resistance to localized corrosion and impressive mechanical performance, SS 317 pipes are the go-to choice for systems that demand a long service life under challenging working conditions.
