Aditya Stainless is a reputable manufacturer and supplier of high-quality Stainless Steel 317L Sheets and Plates based in Kolkata, India. We specialize in providing top-notch stainless steel solutions tailored to meet a variety of industrial requirements. Our SS 317L Sheets and Plates are crafted using cutting-edge technology and rigorous quality control, ensuring they offer outstanding corrosion resistance, impressive strength, and long-lasting durability, even in the most corrosive environments. With an extensive selection of sizes, thicknesses, and finishes, Aditya Stainless serves industries such as chemical, petrochemical, food processing, and marine applications. As a leading name in Kolkata, we promise reliable and cost-effective SS 317L solutions.
Stainless Steel 317L Sheets and Plates are a low-carbon, molybdenum-bearing austenitic stainless steel known for their superior corrosion resistance. They typically contain around 18-20% Chromium, 11-15% Nickel, and 3-4% Molybdenum, with a low carbon content (<0.03%) to reduce carbide precipitation. Their mechanical properties include a minimum tensile strength of 515 MPa, a yield strength of at least 205 MPa, and an elongation of 40% over 50mm. SS 317L also boasts excellent creep resistance and can function effectively at high temperatures up to 870°C, making it perfect for aggressive environments like chemical processing and marine settings.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | 8.0 g/cm3 |
|---|---|
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.

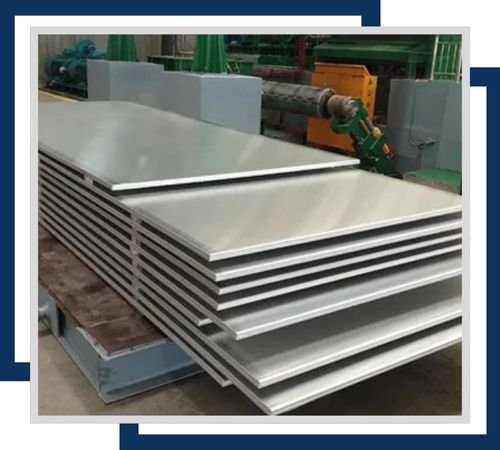

High resistance to corrosion by chlorides and acids available as sheets and plates from a thickness of 3mm to 100mm in width to 2 meters. The hot-rolled product allows heavy usage because it produces a tough and durable finish.

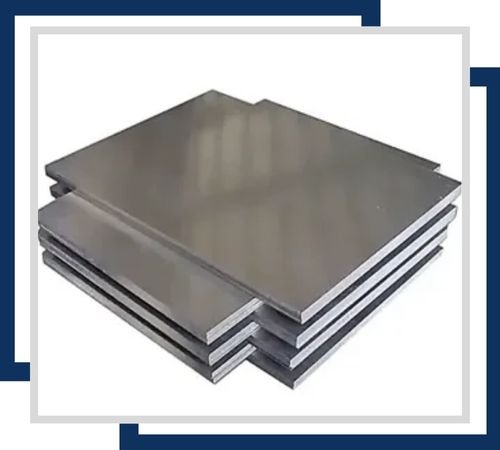

With high corrosion resistance, the cold rolling provides cold rolled sheets and plates that range in thickness from 0.3mm to 6mm, with widths reaching up to 1.5 meters. In the case of cold rolling, it leaves the surface very smooth and precise for aesthetic and high-precision uses.

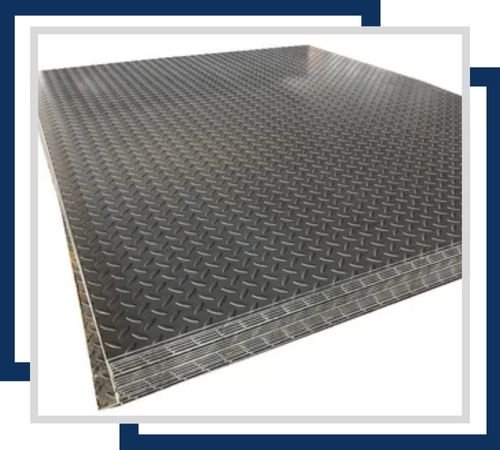

They have been designed with the patterned surface for superior friction and slip resistance. Chequered sheets and plates provide superior resistance to corrosion. These products are available from 1.5mm up to 6mm thickness in custom sizes as per application requirements.

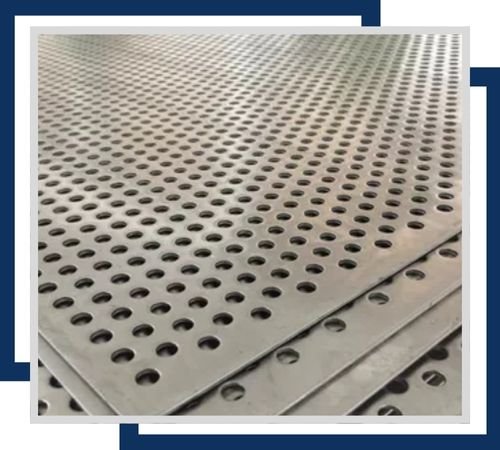

These sheets and plates are superior in corrosion resistance and perforated holes for ventilation, filtering, and aesthetic purposes. Common sizes range from 0.5mm to 6mm thick, and custom hole patterns and diameter sizes are offered according to several industrial and architectural needs.

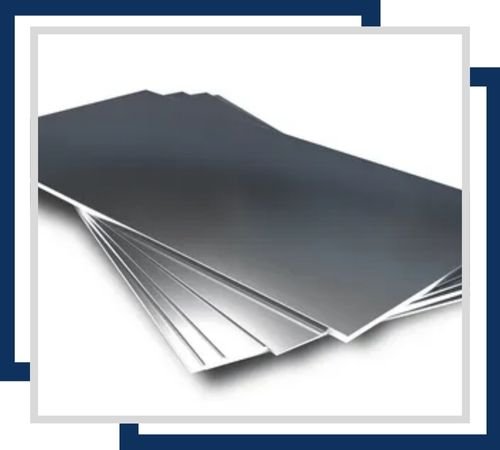

Shim sheets and plates are highly resistant to corrosion and are used for precise spacing and alignment. They are thin gauges usually from 0.1mm to 3mm thick, but may be customized in dimensions according to the particular mechanical and industrial application.

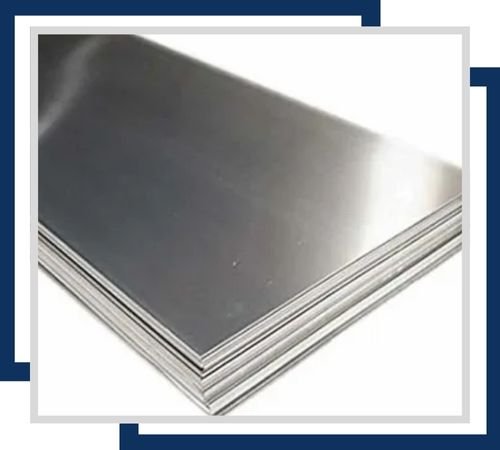

They come with great corrosion resistance as well as the option of polishing to a mirror finish for aesthetic use, suitable in decorative or high-visibility applications. The sheets and plates range in thickness from 0.5mm to 12mm.
We, at Aditya Stainless, ensure a completely hassle-free experience to our customer while providing documentation with our premium range of Stainless Steel 317L Sheets and Plates . Our pack consists of the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. The quality and authenticity of our product get authenticated due to these documents, which then brings trust and confidence in the mind of our client. We also provide test certificate for our Stainless Steel 317L Sheets and Plates, like an MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates indicate our relentless pursuit of client satisfaction and our quest for excellence in the quality of the product.
Stainless Steel 317L Sheets and Plates find extensive use in industries that demand high corrosion resistance and strength. They are commonly utilized in chemical and petrochemical equipment, the pulp and paper industry, condensers, heat exchangers, food processing machinery, and marine applications. In Kolkata, these materials are favored for manufacturing storage tanks, pressure vessels, and piping systems that handle corrosive fluids. Their low carbon content helps prevent sensitization during welding, making them ideal for fabrication tasks. Additionally, SS 317L Sheets and Plates are employed in pharmaceutical equipment and machinery for the textile industry.
