Aditya Stainless is one of the best stainless steel producers and suppliers, which is situated in Kolkata India. Specialized in different varieties of stainless steel material, it is considered one of the top manufacturers with excellent quality of durable and reliable stainless steel parts. Stainless Steel 321H Flanges have the property to show resistance to high-temperature oxidation and corrosion. These flanges are ideal to be used in extreme environments, like chemical processing and aerospace industries. Aditya Stainless offers the best possible quality with their commitment to delivery of superior products and ensures its international standards and, therefore, a trusted name in the industry.
Stainless Steel 321H flanges are essentially iron-based with a composition of about 17-19% chromium, 9-12% nickel, and up to 0.6% titanium. The presence of titanium stabilizes the alloy against sensitization, thus suitable for high-temperature applications. The mechanical properties of 321H include tensile strength at 515-860 MPa, yield strength at 205 MPa, and elongation of about 40%. The material provides very good resistance against oxidation, corrosion, and scaling at high temperature. It’s very suitable to be used for chemical, petrochemical, and power generating industries where materials have to exhibit resistance to high-temperature cycles and environments.
| Specifications | ASTM A182 / ASME SA182 |
| Size | 1/8″ NB TO 48″ NB |
| Standards | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti | SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 321H Flanges Aditya Stainless,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Aditya Stainless stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

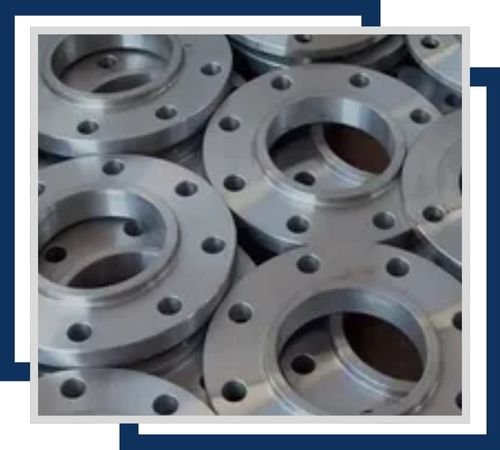

Stainless Steel 321H Threaded Flanges are available in sizes ranging from 1/2″ to 24″ and are designed for easy assembly without welding. They offer good resistance to oxidation and corrosion, making them suitable for various industrial applications.

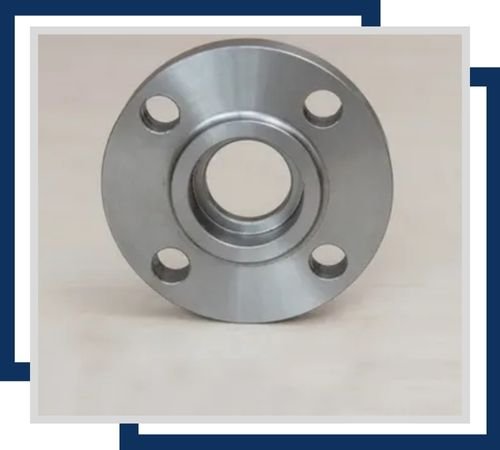

SS 321H Socket Weld Flanges, ranging from 1/2″ to 24″ in size, are designed to fit inside a pipe for strong, reliable connections. They provide excellent resistance to high-temperature environments and corrosive substances.
Stainless Steel 321H Lap Joint Flanges are available in sizes from 1/2″ to 24″ and are used with a backing flange to allow for easy alignment and assembly. They offer high resistance to oxidation and corrosive elements, ideal for applications with frequent disassembly.
Stainless Steel 321H flanges are highly used in high-temperature applications. This is due to their exceptional resistance to oxidation and corrosion. Their operating temperature surpasses 800°C (1472°F). Therefore, the industries that would best utilize them include petrochemical, chemical, and power generation. Their carbon content gives the alloy greater strength at higher temperatures. Flanges are applied to heat exchangers, boilers, pressure vessels, and furnace parts. They exhibit good weldability, and thus are also used in demanding applications requiring resistance to scaling and stress corrosion cracking to guarantee longevity and reliability in harsh environments.
