Home > Sheet and Plates > Stainless Steel 347/347H Sheet and Plates
Aditya Stainless is one of the renowned stainless steel product manufacturing and supplying companies in Kolkata India. Specializing in the supply of sheets and plates in Stainless Steel 347 and 347H, the materials that exhibit superior high temperature oxidation and corrosion resistance, the company supplies products extensively used in the petrochemical, aerospace, and power generation industries. Aditya Stainless has established itself as the leading provider of stainless solutions in the India market, with a focus on high delivery standards of reliability in products, excellent service, and complete customer satisfaction.
Stainless Steel 347 and 347H are stabilized austenitic alloys containing iron, chromium (17-19%), nickel (9-12%), and titanium (5xC to 0.60%). The small amounts of manganese, silicon, and carbon are also present in the alloys. Stainless Steel 347 has excellent resistance to intergranular corrosion, and 347H has higher carbon content for strength at elevated temperatures. Mechanical properties include up to 515 MPa tensile strength, 205 MPa yield strength, and 40% min elongation that makes them suitable for use in high temperature.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.

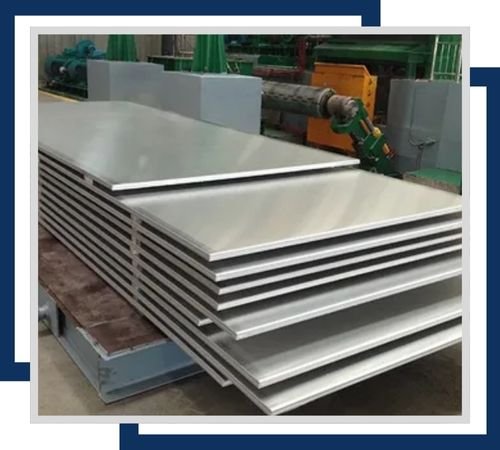

Known for excellent corrosion resistance, these sheets are produced through hot rolling. They are available in thicknesses from 3mm to 50mm and widths up to 2000mm, providing durability in high-temperature environments and are used in heavy-duty applications

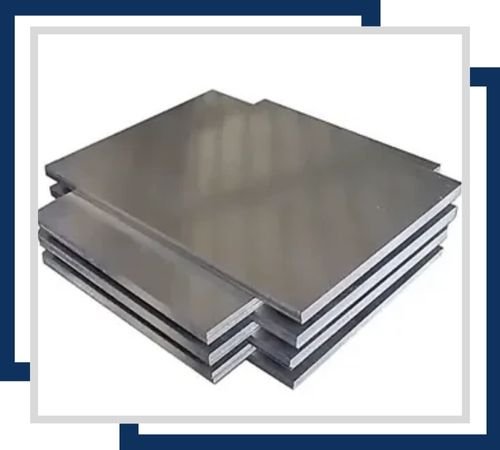

These plates are cold-rolled for a smooth finish and have superior corrosion resistance. They are available in thicknesses ranging from 0.5mm to 12mm and widths up to 1500mm, which is ideal for precision applications and structural components.

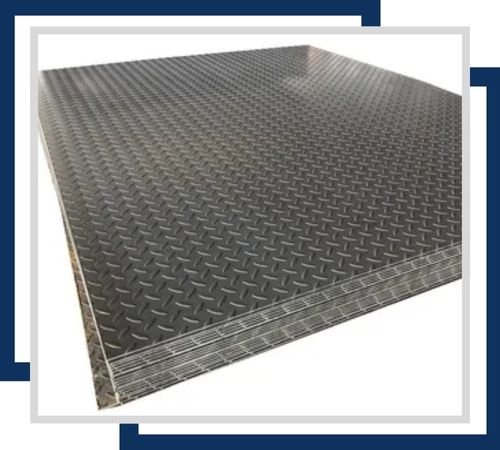

These plates offer excellent corrosion resistance, with a patterned surface for better traction and safety. They are available in various thicknesses, from 1.5mm to 6mm, and up to 1500mm in width, which makes them useful for flooring and industrial applications.

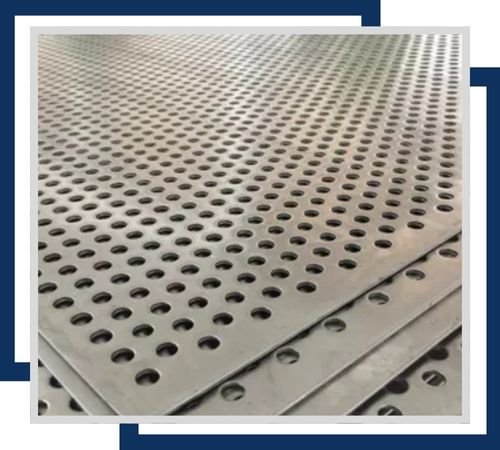

Offering high corrosion resistance, the sheets are perforated in a variety of hole patterns to achieve ventilation and aesthetics. Typical thicknesses vary between 0.5mm to 6mm, while the width may be up to 2000mm for filter applications and decorative panels.

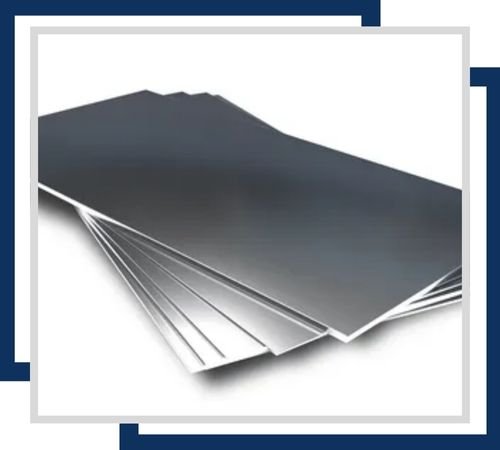

The shim sheets have excellent corrosion resistance. Thickness can range from 0.1mm to 2mm, width up to 1000mm, and are precision cut for exact measurements. They are used where fine adjustments are necessary.

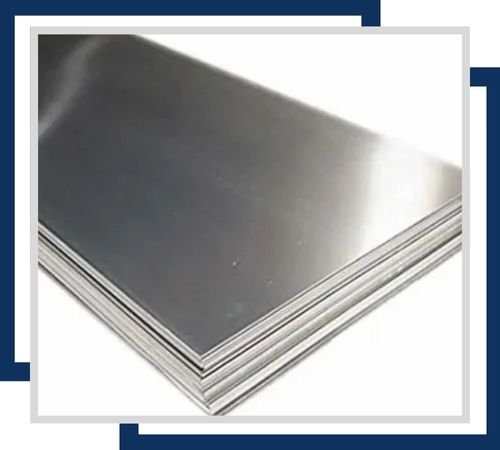

These plates feature outstanding corrosion resistance, and have a polished surface for enhanced appearance and cleanliness. They are available in widely used thicknesses that range from 3mm to 25mm and widths up to 2000mm. They find applications mainly in decorative and sanitary use.
Aditya Stainless will provide customers with an unmatched customer experience based on complete documentation about our superior Stainless Steel 347 and 347H sheets and plates. Essential documents including commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports shall be provided from time to time by us in our products that ascertain the genuity and exceptional quality of products supplied to the valuable customers. Our Stainless Steel 347/347H sheets and plates also include a test certificate: MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates, in regard to our strict quality commitment toward our valued clients.
Stainless Steel 347 and 347H sheets and plates are widely used in high-temperature environments because of their excellent resistance to oxidation and intergranular corrosion. These alloys are commonly found in the petrochemical, aerospace, and power generation industries where they are used in applications such as heat exchangers, reactors, furnaces, and exhaust systems. They are used in chemical processing, pharmaceuticals, and food processing equipment for applications that need resistance against corrosion.
