Aditya Stainless, located in Kolkata, India, has built a solid reputation as a manufacturer and supplier of Stainless Steel 405 Tubing. This tubing is celebrated for its outstanding thermal stability, resistance to oxidation, and affordability. SS 405 is a ferritic stainless steel that’s specifically designed to enhance weldability while minimizing the risk of grain growth during high-temperature applications. The tubes are crafted with meticulous attention to dimensional accuracy, ensuring reliable performance in both industrial and commercial settings. Aditya Stainless caters to a diverse array of industries, including petrochemical, automotive, heat exchangers, and power plants, providing tubing solutions that adhere to international standards for performance and durability under thermal and corrosive conditions.
Stainless Steel 405 Tubing consists of 11.5–14.5% chromium, a maximum of 0.08% carbon, and small amounts of aluminum to enhance oxidation resistance. This ferritic alloy has limited hardenability, delivering moderate strength along with improved ductility and weldability. It boasts a tensile strength of about 415 MPa, a yield strength of at least 205 MPa, and an elongation of roughly 20%. The tubing maintains its shape at high temperatures and can resist scaling up to 815°C. SS 405 provides moderate corrosion resistance, making it ideal for applications that require heat resistance and easy fabrication, especially in welded structures.
| Description | ASTM A240 / ASME SA240 Stainless Steel Plates, ASTM A240 Hot Rolled Stainless Steel Plates |
| Standard | ASTM, ASME, BS, DIN, EN |
| Material | 310S, 310, 309, 309S, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 304, 304L, |
| 302, 301, 201, 202, 403, 405, 409, 409L, 410, 410S, 420, 430, 631, 904L, Duplex, etc | |
| Specification | Cold rolled: 1219mm * 2438mm (4′ x 8′), 1219mm * 3048mm (4′ x 10′), 1220mm * 2440mm, 1250mm * 2500mm or as your requirement.
Hot rolled: 1500mm * 2000mm, 1000mm * 3000mm, 1500mm * 4000mm, 1500m * 6000mm or as your requiremnt. |
| Technique | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Etc. |
| Surface | 2B, 2D, BA, NO. 1, NO. 4, NO.8, 8K, Mirror, Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Thickness | 0.25-200mm, 0.3mm to 120mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, 12000mm |
| Package | Standard Export Seaworthy Package, or as required. |
| Value Added Services | Cladding,Heat Treatment,Annealed, Pickling, Polish,Rolling,Cutting,Bending,Forging,Minor Fabrication Etc. |
| MTC | Mill Test Certificate, Available as per EN 10204 3.1 |
| Element | Content (%) |
|---|---|
| Iron, Fe | 85 |
| Chromium, Cr | 13 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Aluminum, Al | 0.2 |
| Carbon, C | 0.080 |
| Phosphorous, P | 0.040 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 448 MPa | 65000 psi |
| Yield strength (@strain 0.200 %/) | 276 MPa | 40000 psi |
| Elastic modulus | 200 GPa | 29007 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 25.00% | 25.00% |
| Izod Impact (@20°C/68°F) | 41.0 J | 30.2 ft-lb |
| Hardness, Brinell (converted from Rockwell B hardness) | 131 | 131 |
| Hardness, Knoop (converted from Rockwell B hardness) | 146 | 146 |
| Hardness, Rockwell B | 75 | 75 |
| Hardness, Vickers (converted from Rockwell B hardness) | 140 | 140 |
Contact us to get a quick quote for your requirement.
We provides high-quality Stainless Steel 405 Tubing, strength tested, durable, and precise. All our products have undergone thorough testing in their chemical composition analysis, mechanical property assessments, and dimensional checks to provide optimal performance. All products are accompanied by certifications of compliance with industry standards and customer specifications.

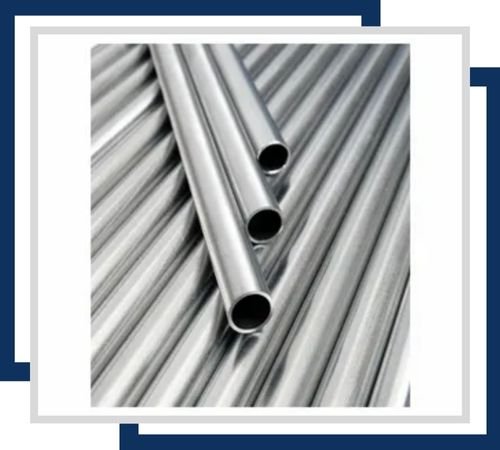

Manufactured without welding, this tubing offers superior structural integrity and reliability. Commonly available in sizes ranging from 1/8″ to 2″ in diameter. It has moderate corrosion resistance suitable for many applications.

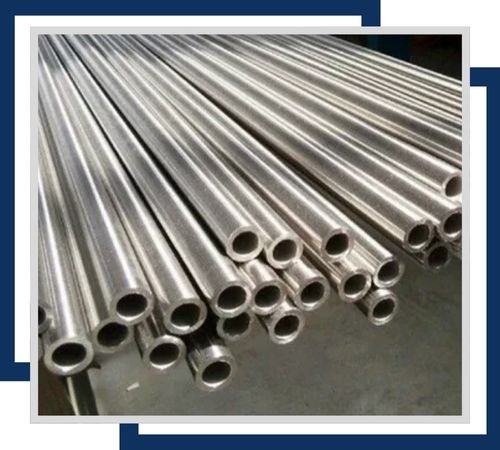

Produced by welding a flat steel strip into a tubular shape, this type is typically available in sizes from 1/4″ to 6″ in diameter. It has good resistance to oxidation and is used where cost-efficiency is essential.
Designed specifically for heat exchanger applications, these tubes are available in diameters from 1/2″ to 2″. They provide good resistance to scaling and oxidation at high temperatures.

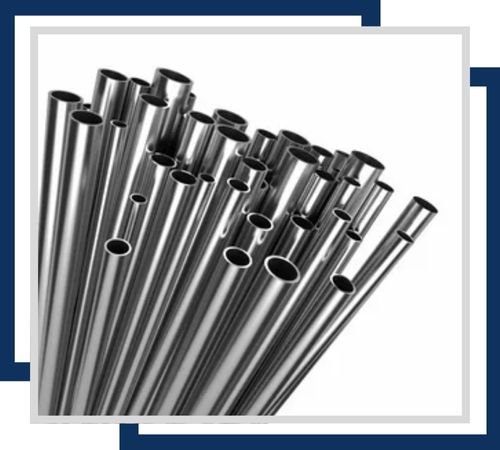

Precision-made for instrumentation purposes, this tubing usually comes in sizes from 1/16″ to 1″ in diameter. It offers excellent resistance to corrosion and is ideal for high-pressure applications.

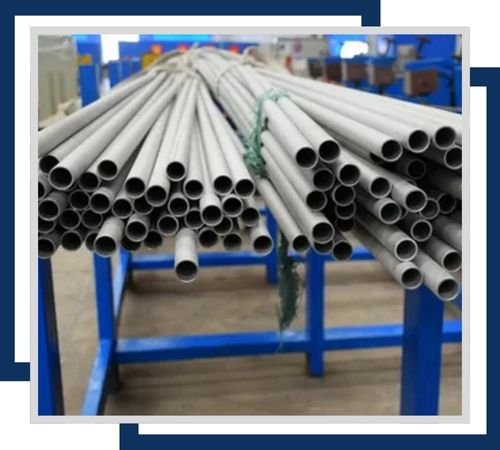

Ideal for boiler systems, these tubes are typically found in sizes from 1″ to 3″ in diameter. They are designed to handle high temperatures and pressures, with good resistance to corrosion.

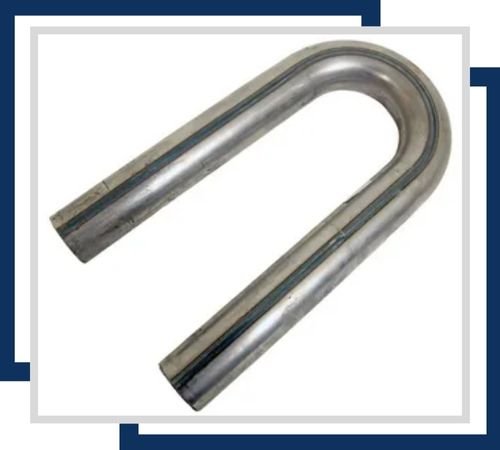

These U-shaped tubes are commonly used in heat exchangers and condensers. Sizes usually range from 1/2″ to 2″ in diameter. They provide good resistance to heat and corrosion.

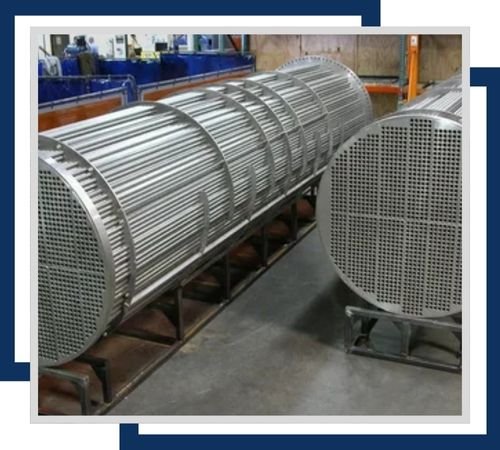

Used in condenser units, these tubes are generally available in diameters from 1/2″ to 2″. They offer excellent resistance to corrosion and high temperatures, making them suitable for various thermal applications.

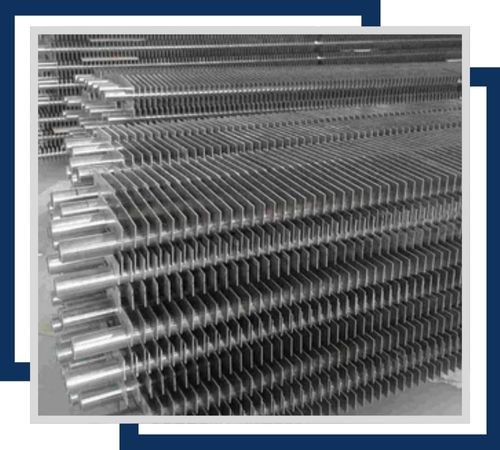

These tubes feature fins attached to increase surface area for heat transfer. They are typically available in diameters from 1/2″ to 2″. They offer good corrosion resistance and are used in heat exchangers and radiators.
Stainless Steel 405 Tubing finds extensive use in automotive exhaust systems, furnace components, and heat exchangers, thanks to its remarkable resistance to high-temperature oxidation and thermal cycling. In the petrochemical and oil refining industries, it’s utilized in process heaters and flue gas handling systems. SS 405 tubing is also a popular choice in power generation for air preheaters, superheater tubes, and various boiler components. Its superior weldability and formability make it an excellent fit for conveyor systems, ductwork, and parts for industrial ovens.
