Home > Stainless Steel 904L Tube Fittings
Stainless Steel 904L Tube Fittings are made up of 19–23% chromium, 23–28% nickel, 4–5% molybdenum, along with trace amounts of copper (around 1–2%) and a very low carbon content (≤ 0.02%). This unique blend of elements grants them outstanding corrosion resistance, particularly against strong reducing acids. Their mechanical properties are impressive, featuring a tensile strength of at least 71,000 psi (490 MPa), yield strength of at least 31,000 psi (220 MPa), and an elongation of at least 35%. SS 904L also boasts excellent toughness and weldability, making these tube fittings capable of enduring high pressures and temperatures while ensuring tight, vibration-resistant seals in critical fluid or gas applications.
| Specifications | : | ASTM S182 / A276 ASME SA 479 |
| Tube Size | : | 6mm to 38mm to 1/4″ to 1 1/2″ |
| Thread | : | NPT, BSP, BSPT, UNF, ISO, SAE, etc. |
| Brass | : | ASTM B16 ASTM B 453 |
| Pressure Rating | : | 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | Cu |
| SS 904L | 0.02 max | 2.0 max | 1.0 max | 0.045 max | 0.035 max | 19 – 23 | 23 – 28 | 4 – 5 | 1 – 2 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 904L | 8.05 g/cm3 | 1350 °C (2460 °F) | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.
At Aditya Stainless, we are proud to be the largest supplier, manufacturer, and exporter of Stainless Steel 904L Tube Fittings in Kolkata India. Our state-of-the-art solutions address all your piping needs. With advanced production facilities in the India, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring that stock is readily available to meet your demands.

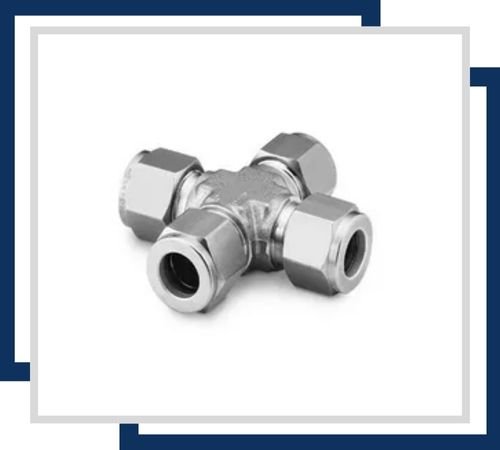

Stainless Steel 904L Union Cross connects four tubes at a right angle. It typically comes in sizes ranging from 1/4″ to 2″. Known for its exceptional corrosion resistance, it is ideal for highly corrosive environments.
Stainless Steel 904L Reducer Union smoothly transitions two different tube sizes. Available in sizes from 1/4″ to 2″ and designed for high corrosion resistance, it’s perfect for managing flow changes in corrosive settings.

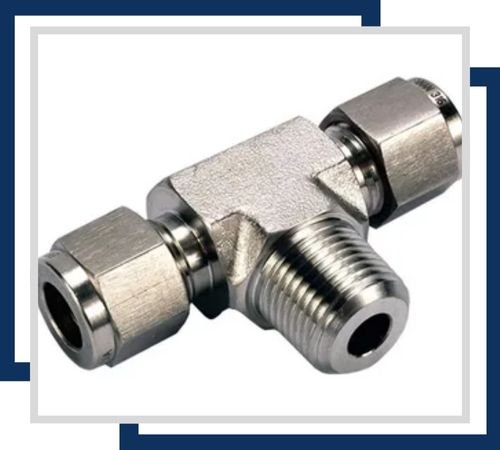

Stainless Steel 904L Male Branch Tee features a male thread on the branch and is used to create a branch connection. It is available in sizes from 1/4″ to 2″ and offers excellent resistance to corrosion, making it suitable for harsh environments.

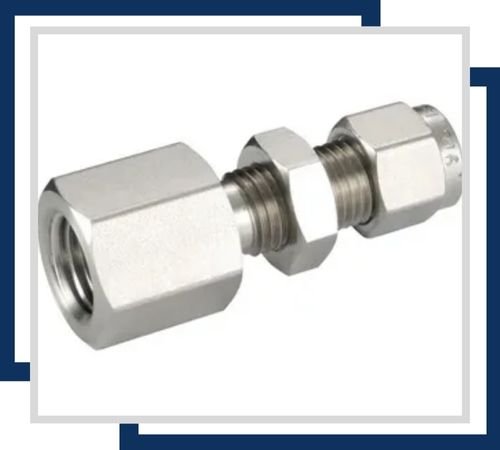

The Stainless Steel 904L Female Connector is designed to join two tubes with female threads. It comes in sizes from 1/4″ to 2″ and is highly corrosion resistant, ideal for chemical processing and marine applications.

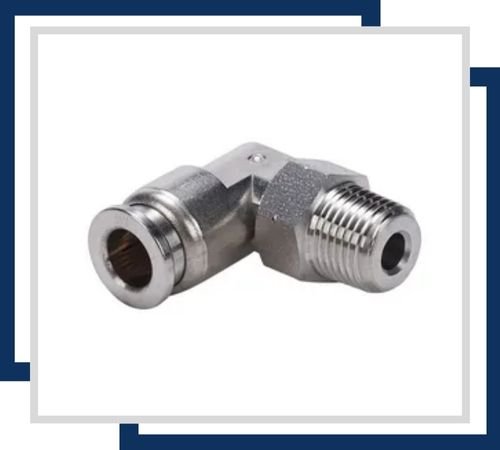

Stainless Steel 904L Male Elbow allows for a 90-degree change in the direction of the tubing. Available in sizes from 1/4″ to 2″, it provides superior corrosion resistance and is suitable for complex piping systems in corrosive environments.
A Stainless Steel 904L Male Connector connects two tubes with male threads. It is available in sizes from 1/4″ to 2″ and offers high resistance to corrosion, making it ideal for use in aggressive chemical environments.
Aditya Stainless is a leading supplier and stockist of high-quality Stainless Steel 904L Tube Fittings in Kolkata India. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
SS 904L Tube Fittings find extensive use in environments prone to high corrosion, such as chemical processing, pulp and paper, oil & gas, power generation, and marine sectors. They are particularly effective in systems that handle sulfuric acid, chloride-rich solutions, and seawater. Common applications include instrumentation lines, hydraulic systems, gas sampling, offshore platforms, heat exchangers, and control systems. These fittings guarantee secure, leak-proof connections and maintain their integrity even under thermal cycling and high-pressure conditions. With their superior design, they are an essential component in various industrial applications.
