Aditya Stainless, for nearly three decades, is a leading manufacturer and supplier of high-quality stainless steel products from Kolkata India. The company specializes in the stainless steel forged fitting with premium-grade products that make it synonymous with durability, precision, and reliability for customers spread across various industries. we committed to excellence and has a comprehensive range of forged fittings including elbows, tees, reducers, and flanges engineered to meet international standards. By using advanced technology and a skilled team, the company ensures on-time delivery and maximum satisfaction for its customers, making it a trusted name in the field of manufacturing and supply in stainless steel in the India.
Stainless steel forged fittings are made of alloy stainless steel, which is mainly composed of elements such as iron, chromium (10.5-20%), nickel (15%) and molybdenum They have exceptional strength, durability, corrosion, high temperature , and apparent resistance oxidation . These fittings provide superior mechanical properties including high tensile strength and stiffness. Advantages include excellent resistance to pitting and crack corrosion, increased stress corrosion crack resistance, and reliable performance in harsh environments, making it ideal for a variety of industrial applications.
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| Stainless Steel Forged Fittings | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel forged fittings undergo rigorous testing to ensure quality, strength and durability. Each product is thoroughly inspected using advanced techniques such as dimensional testing, pressure testing and material analysis. The company offers a full range of certifications, including ASTM, ISO, and other industry standards, assuring reliable and compliant fittings.

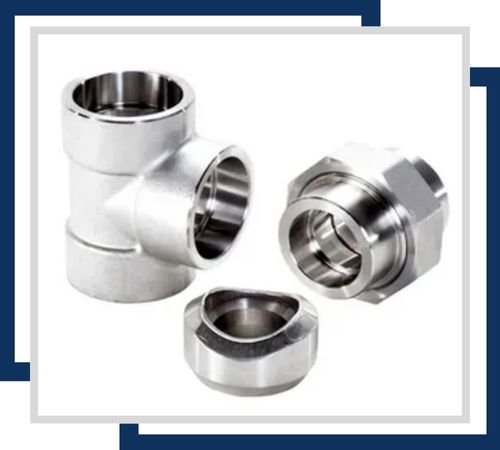

Corrosion-resistant and durable, these fittings are ideal for high-pressure applications. They are typically available in sizes ranging from 1/8 inch to 4 inches, with dimensions conforming to ANSI B16.11 standards, ensuring a secure and leak-proof connection.

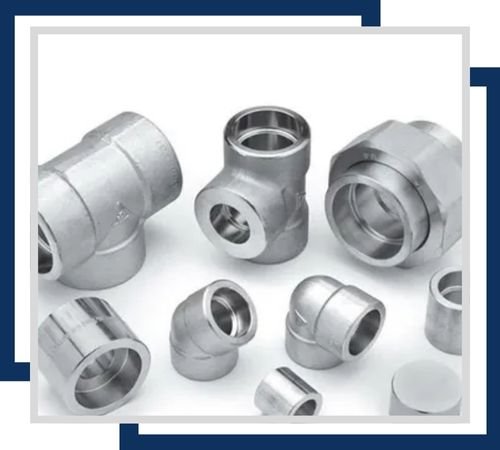

These fittings offer excellent corrosion resistance and are suitable for moderate to high-pressure applications. Sizes range from 1/8 inch to 6 inches. They conform to ASTM A105 or A182 standards, providing reliable connections with threaded ends for easy installation.
Designed for high-pressure systems, these elbows provide corrosion resistance and are available from 1/2 inch to 4 inches. They are made to ANSI B16.11 specifications, facilitating smooth directional changes in piping systems with minimal pressure loss.

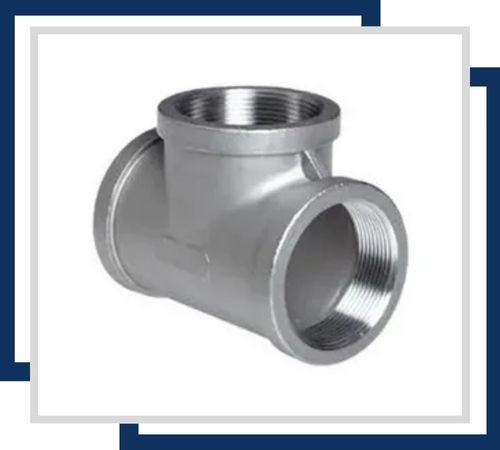

Corrosion-resistant and versatile, threaded tees come from 1/8 inch to 6 inches. They adhere to ASTM standards, enabling the branching of pipes at a 90-degree angle while ensuring a secure and leak-free connection for various piping systems.

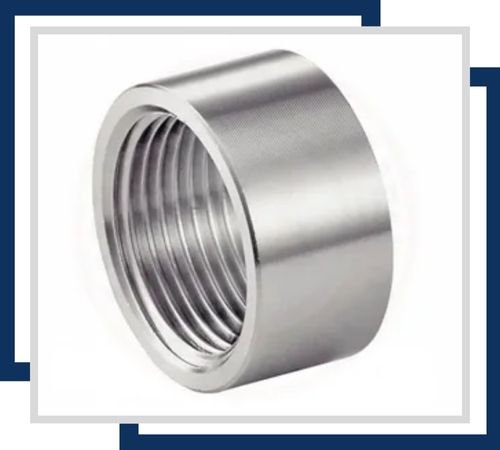

Half couplings are available in sizes from 1/8 inch to 6 inches, offering corrosion resistance and strength. They conform to ASTM A105 or A182 standards and are used to connect pipes or tubes, providing a reliable interface in threaded applications.

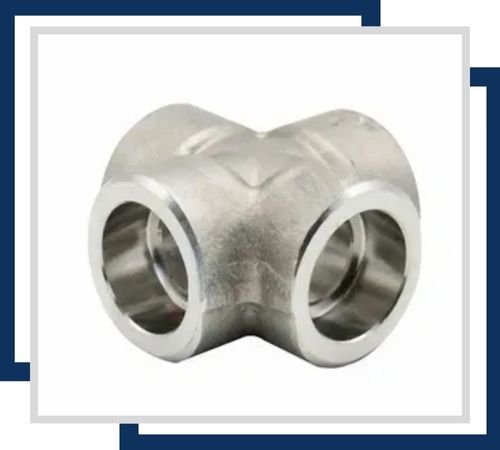

These fittings, resistant to corrosion and high-pressure environments, are available in sizes from 1/2 inch to 4 inches. They meet ANSI B16.11 standards and provide four-way connections, enabling the branching of pipes in multiple directions within a system.
Stainless steel mesh fittings are widely used in applications requiring high strength, durability and corrosion resistance. These fittings are important in oil and gas, petrochemical, chemical systems, power plants and water treatment system applications. They provide a safe connection in pipelines, helping to control pressure and flow. The forged products are more reliable because of the resistance to extreme temperatures and chemicals. Moreover, their high tensile strength will ensure a longer working life under hard conditions. The product is applied to valves, flanges, elbows, tees, and reducers, hence contributing to overall accuracy and safety in mechanical systems.
