Home > Pipe Fittings > Stainless Steel Socket

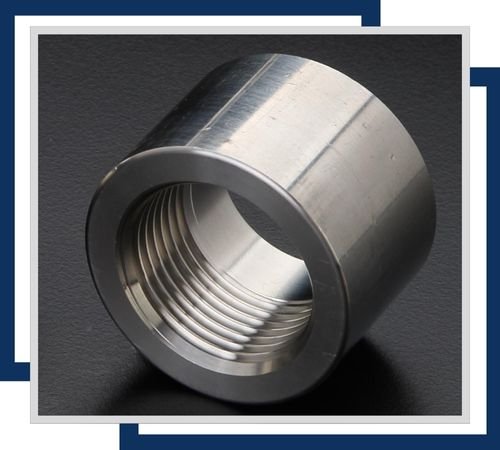

Aditya Stainless stands out as a leading manufacturer and supplier of Stainless Steel Sockets in Kolkata, India. We pride ourselves on delivering top-notch, precision-engineered pipe fittings tailored for a variety of industrial needs. Stainless steel sockets play a crucial role in connecting two pipes or fittings within a piping system, ensuring leak-proof, high-pressure, and corrosion-resistant connections. Our sockets come in various grades, including SS 304, 304L, 316, 316L, and 310, designed to endure harsh chemicals, extreme temperatures, and tough environmental conditions. We adhere to global standards like ASTM, ANSI, ASME, and DIN, guaranteeing dependable performance across the oil & gas, petrochemical, and power sectors.
Stainless Steel Sockets are crafted from corrosion-resistant alloys, typically containing 18–20% chromium, 8–12% nickel, and in certain grades, 2–3% molybdenum (like SS 316) to boost pitting resistance. They showcase impressive tensile strength ranging from 515 to 750 MPa, yield strength between 205–450 MPa, and an elongation of about 30%, depending on the specific grade and heat treatment. These mechanical properties ensure excellent resistance to thermal stress, pressure, and chemical exposure, making these sockets perfect for demanding and corrosive piping systems.
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size | ½”NB to 48″NB in |
| Schedule | Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| SS | 304 | 304N | 304LN |
|---|---|---|---|
| Ni | 8 – 11 | 8 – 11 | 8 – 11 |
| Fe | Balance | ||
| Cr | 18 – 20 | 18 – 20 | 18 – 20 |
| C | 0.08 max | 0.08 max | 0.035 max |
| Si | 0.75 max | 0.75 max | 0.75 max |
| Mn | 2 max | 2 max | 2 max |
| P | 0.040 max | 0.040 max | 0.040 max |
| S | 0.030 max | 0.030 max | 0.030 max |
| N | 0.10 – 0.16 | 0.10 – 0.16 | |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
Our stainless steel sockets are manufactured to the highest quality. Each piece is thoroughly tested in terms of hardness, chemical analysis, PMI testing, flattening, as well as micro and macro test, pitting resistance, flaring, and IGC tests. We give documentation that includes commercial invoice, packing lists, Certificated of Origin, and a letter of guarantee for everything that’s put under transparency. To spice things, we have third-party inspection certificates that affirm the customer’s satisfaction and product quality.
Stainless Steel Sockets find extensive use in connecting pipe sections in systems where strength, cleanliness, and corrosion resistance are paramount. They are commonly utilized in chemical processing units, refineries, power plants, water treatment facilities, food and beverage operations, and pharmaceutical pipelines. SS sockets are the go-to choice for high-pressure and high-temperature applications, thanks to their durability and leak-proof sealing capabilities. Popular types include socket weld and threaded sockets, which provide secure connections in both permanent and removable setups. Their reliability and resistance to scaling and chemical corrosion make them an ideal choice for various applications.
